Telehandlers

Forklift, Reach 80' Rotating 9,000 - 13,000#

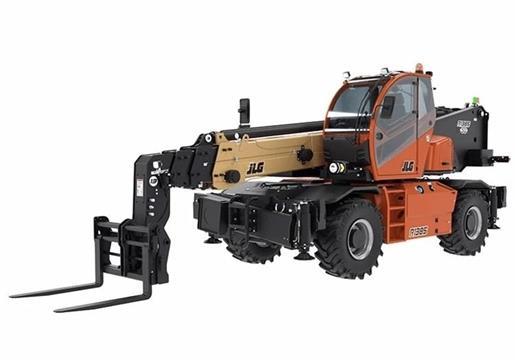

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Manitou JLG

Model: MRT2540P ST4 R1385

Quantity:

Additional Information

Manitou MRT 2540 Privilege Plus ST4
The MRT 2540 Privilege Plus ST4 is a rotating telehandler specially designed to meet the needs of construction use involving great heights. Its high lifting capacity, 4-point chain boom and full 360 rotation mean you can perform a number of maintenance operations from a single stationary point, whilst the telescopic outriggers ensure unfailing stability even on uneven ground.
And for increased day-to-day safety, the CEC (Load Status Monitoring System) is there to make sure the actual weight load doesn't exceed the theoretical work chart, cutting the machine off in the event of an overload.
_____________
R1385 JLG
Rated Capacity 13,200-lb / 6,000-kg
Maximum Lift Height 84-ft 6-in / 25.7-m
Load at Max Height 5,500-lb / 2,500-kg
Maximum Forward Reach 72-ft 6-in / 21.9-m
Load at Max Reach 1,450-lb / 600-kg
Frame Leveling 6 Degrees
Lift Speed (boom retracted) Up 14.5 seconds
Lift Speed (boom retracted) Down 9.5 seconds
Boom Speed Extended 30 seconds
Boom Speed Retracted 15 seconds
Top Travel Speed (Foam-Filled) 12.4 mph / 20 km/h
Drawbar Pull (loaded) 22,500-lb / 100-kN
Outside Turning Radius 14-ft 5-in / 4.4-m
Operating Weight 50,570-lb / 22,940-kg
Engine
Make and Model FPT NEF-N4.5 Tier 4B
No. of Cylinders 4
Displacement 274 cu in / 4.5 L
Gross Power Basic 168 hp / 125 kW
Maximum Torque @ 1,500 rpm 524 lb-ft / 710 Nm
Fuel Tank Capacity 58.1 gal / 220 L
Transmission
Hydrostatic 2-speed
Axles
Trunnion mounted planetary 35-Degree steer axles
High bias limited slip differential on front axle
Brakes
Service brakes are inboard wet disc brake on front and rear axles and include inching.
Parking brakes are wet disc spring-applied hydraulic release on front axle.
Tires
Standard Foam Filled Tires AGP23 18 x 22.5 Lug Tread
Optional Air Tires AR01 445/65 R22.5 Turf Tread
Air Tires AGP23 18 x 22.5 Lug Tread
Cab
Adjustable Seat Reversing Camera Certified ROPS/FOPS Structure
Horn Enclosed Cab Tilt & Auxiliary Hydraulics on Joystick
Retractable Sunscreen Road Lights Dual Joystick Controls
Heat and Air Conditioning
Steering 4-Wheel
Power steering
Operator selectable 4-Wheel Circle, 4-Wheel Crab, 2-Wheel Front
Instruments
Hour meter Fuel Gauge Engine Oil Pressure Gauge
Voltmeter DEF Gauge Temperature Gauge
Hydraulic System-Implement
Capacity 84.5 gal / 320 L
Load sense piston pump. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components.
Battery:
Battery Voltage - 24V
Battery Amps - 120 Ah
Operational:
Approximate weight : 37,842 lbs.
Travel Speed - High 22.3 mph
Lift Capacity - 8,800 lbs.
Max. Lift Height - 80' 8"
Max. Reach - 60' 7"
Drawbar Pull - 18,434 ft. lbs.
Tires - 18-22.5
Engine:
Engine Make - Mercedes
Engine Type - OM 934 E4-5, Stage IV, Tier IV Final
Horsepower - 156 hp
Displacement - 313 cu. in.
Cooling - Water
Cylinders 4
Fuel Type Diesel
Drivetrain:
Transmission Type - Hydrostatic
Hydraulics:
Hydraulic Tank Capacity - 78 gal.
Std Pump Flow - 30.4 gpm

* Please call us with any questions about our forklift reach 80 foot rotating 9 000 13 000 rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
