Articulating Boom Lifts

Lift, Boom 40' Articulating Narrow

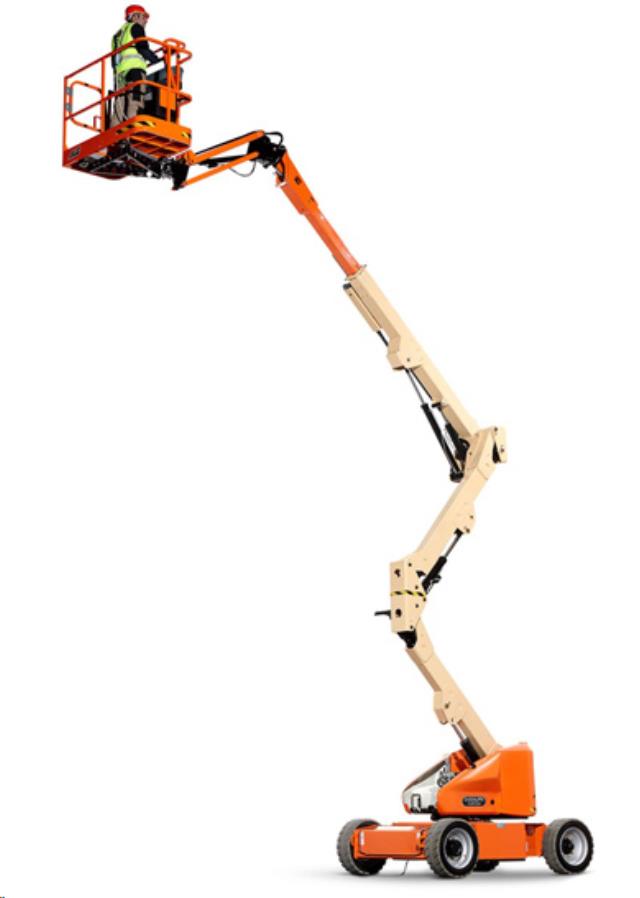

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: JLG

Model: E400AJPN

Quantity:

Additional Information

Platform Height Elevated - 40 ft
Overall Width - 4 ft 11 in.
Platform Capacity - 500 lb
30 x 48 in. (.76 x 1.22 m) Low Mount Platform
180 Degree Hydraulic Platform Rotator
110V-AC Receptacle On Platform
5 Degree Tilt Alarm/Indicator Light
Machine Weight 14900 lb / 6758.53 kg
Ground Clearance 5 in. / 0.13 m
Machine Height 6 ft 6 in. / 1.97 m
Machine Length 22 ft / 6.71 m
Machine Width 4 ft 11 in. / 1.5 m
Platform Dimension A 2 ft 6 in. / 0.76 m
Platform Dimension B 4 ft / 1.22 m
Platform Height 40 ft / 12.19 m
Tailswing 4 in. / 0.1 m
Tire Size 22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R)
Wheelbase 6 ft 7 in. / 2.01 m
Horizontal Jib Rotation 180 Degrees

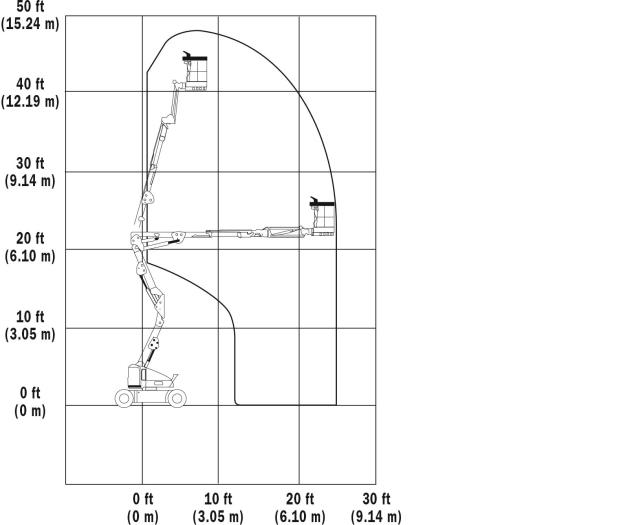

Horizontal Outreach 22 ft 5 in. / 6.83 m
Platform Height 40 ft / 12.19 m
Up and Over Height 21 ft 6 in. / 6.55 m
Vertical Jib Rotation 144 Degrees
Drive Speed - Platform Lowered 3 mph / 4.83 km/h
Gradeability - 2WD 30 %
Platform Capacity 500 lb / 226.80 kg
Platform Capacity - Unrestricted 500 lb / 226.80 kg
Swing 360 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 10 ft 4 in. / 3.15 m
Electrical System 48 Volts DC

* Please call us with any questions about our lift boom 40 foot articulating narrow rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
