Articulating Boom Lifts

Lift, Boom 80' Articulating 4x4

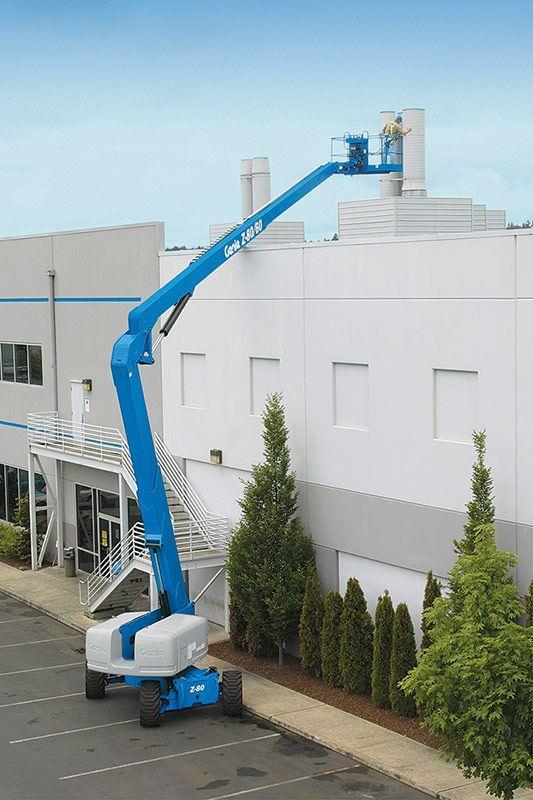

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: JLG Genie

Model: 800AJ Z80/60

Quantity:

Additional Information

Power Source:
Auxiliary Power - 12 Volts DC
Fuel Tank Capacity - 39 Gallon
Engine Type - Diesel - DEUTZ AG TD 3.6L Tier 4i 62 hp
Performance:
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted - 500 lb
Swing - 360 Degrees
Swing Type - Continuous
Turning Radius - Outside (2WS) - 22' 6"
Turning Radius - Outside (4WS) - 14' 6"
Dimensional Data:
Ground Clearance - 1'
Machine Height - 9' 10"
Machine Length - 36' 6"
Machine Width - 8" 2"
Platform Height - 80'
Tail-swing - 2' 6"
Tire Size - 18 x 19.5 Wide Lug Tread

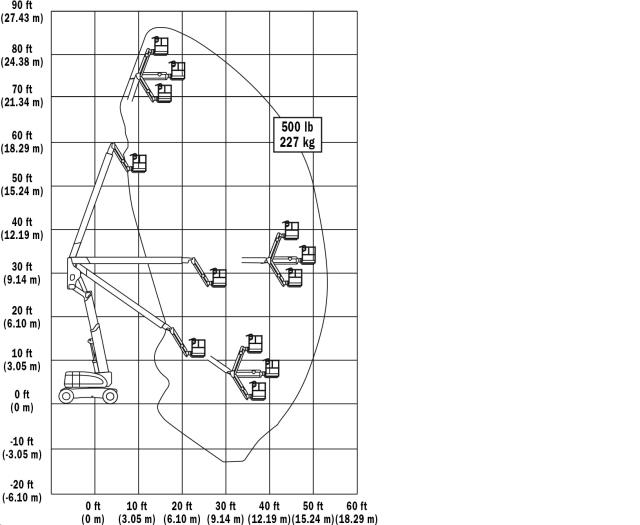

Reach Specifications:
Horizontal Outreach - 51' 10"
Platform Height - 80'
Up and Over Height - 32' 1"
Vertical Jib Rotation - 130 Degrees
General:
Capacity - Hydraulic Reservoir - 40 Galllon
Ground Bearing Pressure - 76 psi
Machine Weight - 34300 lb
________
Z-80/60
Max Working Height 84 ft
Max Horizontal Reach 60 ft
Max Up and Over Clearance (riser extended) 29 ft
Below Ground Reach 15 ft 10 in
Platform Capacity 500lb
Genie Fast Mast system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
Quiet diesel engine options for increased performance, gradeability and terrainability
