Lift, Boom 60' Articulating Hybrid 4x4

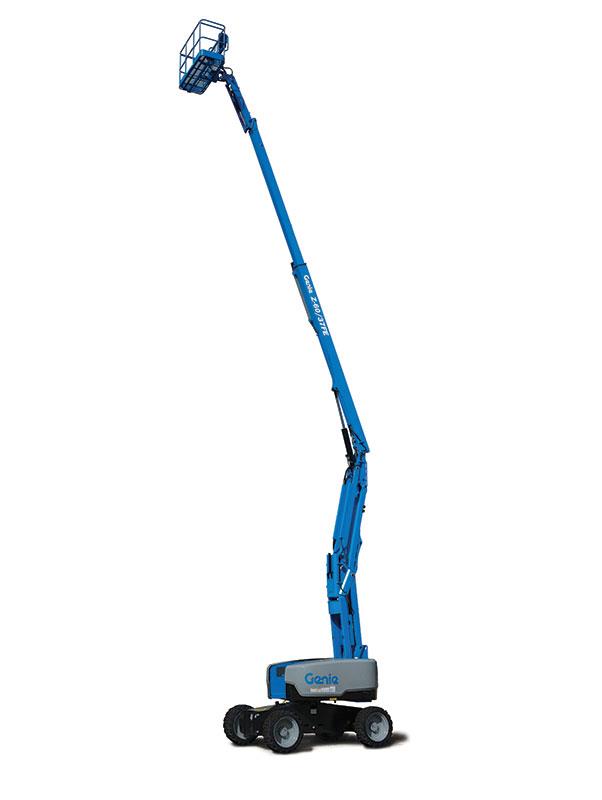

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: JLG Genie

Model: M600JP Z-60FE

Quantity:

Additional Information

M600JP
Environmentally friendly zero emissions while in electric mode. Does have noisy diesel generator while charging but reduced noise when running of battery power.
Non-marking tires.
Maneuverability move over uneven surfaces with the Automatic Traction Control
Key Specs:
Machine Width - 7' 11"
Platform Capacity - 500 lb
Platform Height - 60' 4"
Power Source:
Batteries - 8 x 6V, 415 amp-hr
Electrical System - 48 Volts DC
Generator:
Engine - Kubota
Fuel Tank Capacity - 13 gallon
Fuel Type - Diesel
Horsepower / Kilowatts - 7 hp / 5 kW
Performance:
Drive Speed - Platform Lowered - 3-mph
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform Capacity - 500 lb
Swing - 400 Degrees
Swing Type - Non-Continuous
Turning Radius - Outside - 15' 4"
Dimensional Data:
Ground Clearance - 1'
Machine Height - 8' 4"
Machine Length - 33' 4"
Machine Width - 7' 11"
Platform Dimension - 2' 6" x 6'
Platform Height - 60' 4"
Tailswing - 4'
Tire Size - 36 x 14-22.5 Non-marking Pnuematic
Wheelbase - 9'

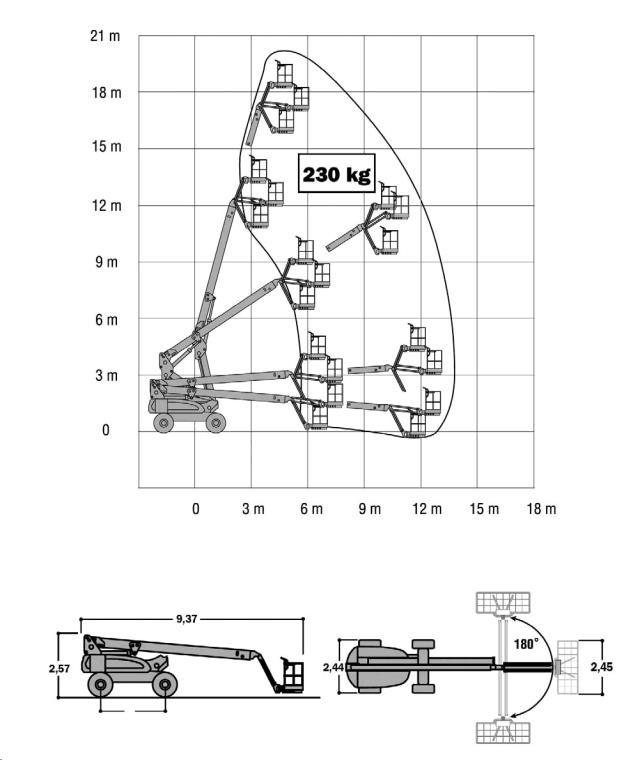

Reach Specifications:
Horizontal Jib Rotation - 180 Degrees
Horizontal Outreach - 44' 5"
Platform Height - 60' 4"
Vertical Jib Rotation - 145 Degrees
Machine Weight - 16050 lb
___
Z-60
Max Working Height 84 ft
Max Horizontal Reach 60 ft
Max Up and Over Clearance (riser extended) 29 ft
Below Ground Reach 15 ft 10 in
Platform Capacity 500 lb
Lift capacity max. - unrestricted 500 lb
Power Diesel
Auxiliary power unit 12V DC
Hydraulic tank capacity 45 gal
Fuel tank capacity 35 gal
Weight, 2WS 37,500 lb
Weight, 4WS 38,000 lb
Tire contact pressure 130 psi
Occupied floor pressure (tires) 377 psf
74 hp, 55 kW, Deutz TD2.9L4 turbo diesel, Tier 4f

* Please call us with any questions about our lift boom 60 foot articulating hybrid 4x4 rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
