Dump Trucks

Crawler, Track Dumper 2.7 Yd

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI

Model: TCR50-2

Quantity:

Additional Information

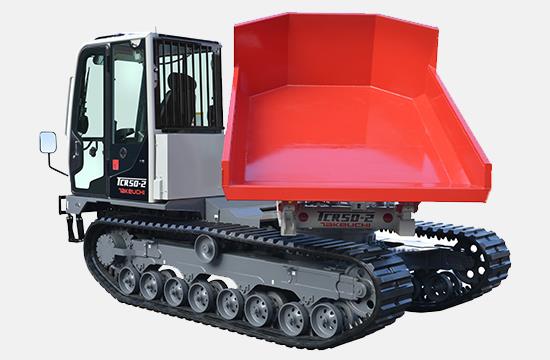

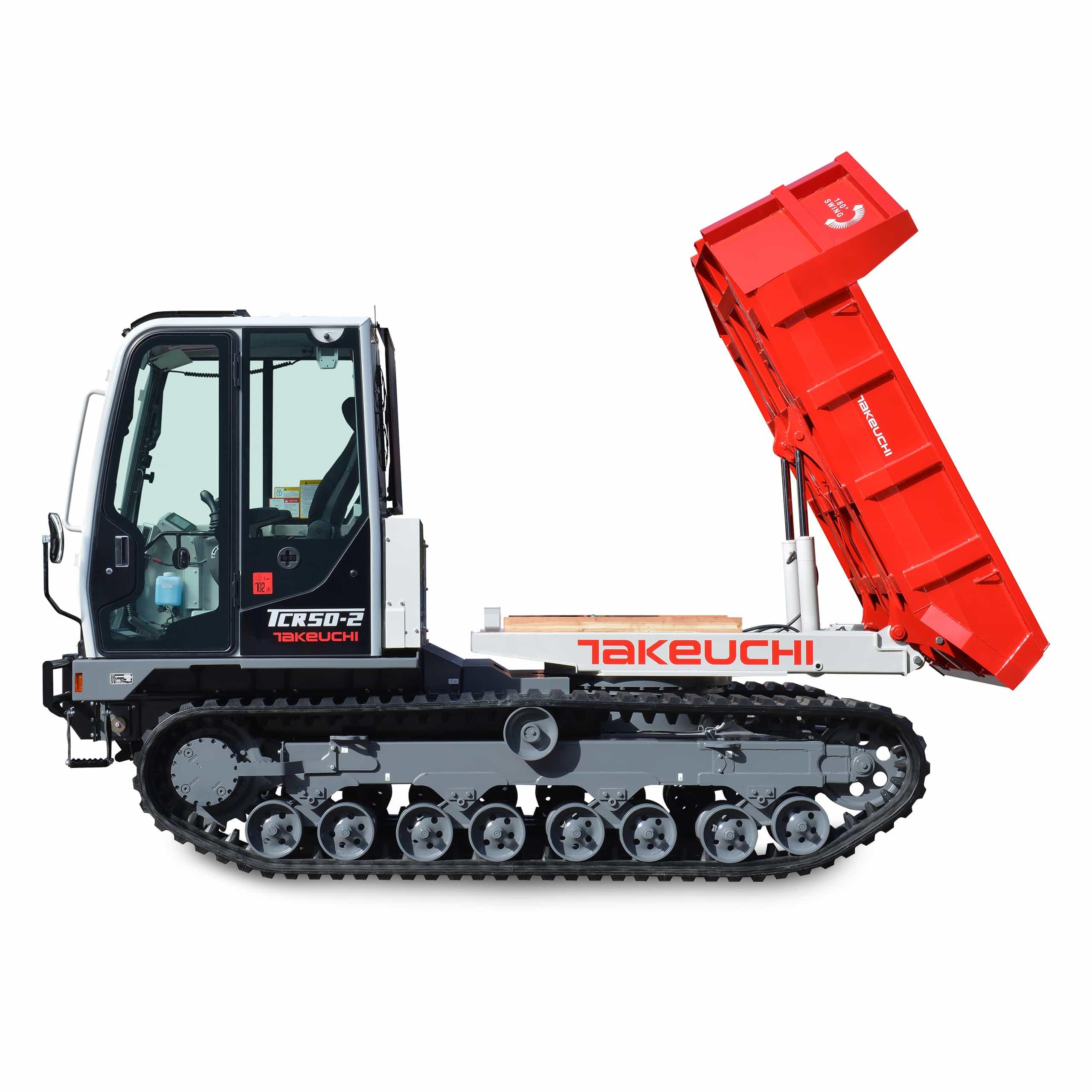

TCR50-2 Crawler Dumper
The TCR50-2 crawler dumper has an operating weight of 14,440 lbs and a 118-horsepower engine, making it a versatile, well-balanced dump carrier that excels in a wide range of applications. With a 65-degree dumping angle and 8,157 lb maximum loading weight, the TCR50-2 allows operators to carry up to 2.7 cu yds of material while rotating and dumping it in a single cycle. The machine s ability to rotate the dump bed 180 degrees reduces both the need for constant repositioning and wear and tear of its rubber tracks.
MACHINE DIMENSIONS
Overall Height 8 ft 11.3 in
Height of Bumper 3 ft 4.9 in
Overall Length 15 ft 3.5 in
Length of Track Ground 8 ft 2.4 in
Track Base 10 ft 3.8 in
Dump Body Floor Height 4 ft 4.4 in
Dump Body Flap Height from Ground 5 ft 7.5 in
Overall Width 7 ft 2.6 in
Track Shoe Width 18 in
Ground Clearance of Undercarriage 17 in
Cab Width 38.9 in
Dump Body Length (Inside) 8 ft 6.9 in
Dump Body Width 5 ft 10.7 in
Height of Dump Body Gate 15 in
Height of Dump Body Front Gate 29.5 in
ENGINE
Make/Model Yanmar 4TNV94FHT
Displacement 186 cu in
Rated Output (ISO 14396) 118 hp
Maximum Torque 302 ft lb
Alternator 12 V - 0.96 kW
Battery (IEC 60095-1) 12 v 90 A h
FLUID CAPACITIES
Engine Lubrication 11.1 qt
Cooling System 19.5 qt
Fuel Tank Capacity 33.5 gal
Hydraulic Reservoir Capacity 11.6 gal
Hydraulic System Capacity 22.2 gal
DEF Tank Capacity 3.6 gal

* Please call us with any questions about our crawler track dumper 2.7 yd rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
