Dump Trucks

Truck, Dump 3 Yard

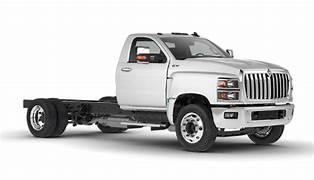

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: INTERNATIONAL

Model: CV515 SFA 4X4

Quantity:

Additional Information

CV515 SFA 4X4
GVWR
4x2: 15,000 lbs. - 23,500 lbs.
4x4: 17,500 lbs. - 23,000 lbs.4X4
Models/BBC/BA
CV515: 115 BBC, 34 BA
Wheelbase Options
Day Cab: 165 - 243"
Crew Cab: 175 - 235"
Chassis Configurations
Front Axles
Dana Spicer Non-Driving: 6,250 - 8,000 lb.
Dana Spicer Driving: 7,500 lb.
Rear Axles
Dana Spicer - Single Reduction: 10,000 - 15,500 lb.
Drivetrain
Engine
International 6.6L
350 hp @ 2,500 rpm
700 lb-ft of peak torque @ 1,400 rpm
Exhaust System
Horizontal, Frame Mounted, Right Side Under Cab
Tailpipe
For 165 and 175 wheel base, the tailpipe routes over rear axle and exits behind the rear wheel
For 189 or greater wheelbase, standard is a straight, horizontal tailpipe with an option to exit ahead of the rear wheel
Frame
High Strength, Low Alloy Steel 50,000 PSI
Front Axle/Suspensions
4x2: (Dana Spicer - non-driving) 6,250 - 8,000 lb.
4x4: (Dana Spicer - driving) 7,500 lb.
Rear Axle
Single Rear Axle
Dana Spicer: 10,000 - 15,500 lb.
Rear Suspensions
Spring, Vari-Rate: 11,000 - 15,500 lb.
Optional air, International Ride Optimized Suspension (IROS): 12,000 - 15,500 lb. (4x2 only).
Liquidspring - 13,500 lb. or 15,500 lb.
Transmission
Allison 6-speed: 1700, 1750, 2700, 2750 Series
Available Vocational Codes: HS, RDS, EVS, MH
Other Components
Brakes
Hydromax with 4-channel ABS, traction control, electronic stability control and a Hydromax booster for trailer sway control
Electrical System
Batteries
(2) Batteries: 1,100 1,300 CCA
(3) Batteries: 2,250 CCA
Alternator
Denso: 150 220 amps
Fuel Tank
Single, Rectangular 25-gallon, Mounted Between Rails Forward of Rear Axle
Standard 40-gallon, Mounted between Rails Behind Rear Axle
Dual, Rectangular 25-gallon and 40-gallon
PTO
Available Transmission-mounted, Right Side (requires PTO-equipped transmission)
Steering
Bosch: S2 8014 Plus
Tires
Goodyear, Continental
Transfer case (4x4)
Meritor: 3203, 2-speed, Gear Drive, 3,000 lb-ft Capacity with Electric Shifting Controls, with optional skid plate

* Please call us with any questions about our truck dump 3 yard rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
