Telescopic Boom Lifts

Lift, Boom 125' Articulated 4x4

Where to find Lift, Boom 125  Articulated 4x4 in Santa Fe Springs

Image for reference only
Actual item may look different
Click on image for larger view

Where to find Lift, Boom 125  Articulated 4x4 in Santa Fe Springs

Click on above thumbnails for alternate view

Manufacturer: JLG

Model: 1250AJP

Quantity:

Additional Information

  • Elevate your work performance with the JLG 1250AJP. Designed for efficiency, this boom lift takes you from ground to 120 ft. in just 95 seconds.
  • Strong 100,000-psi steel and a dual 1,000 lb. / 500 lb. capacity provides stability and power. And a fuel-efficient Tier 4 engine keeps operations cost-effective and environmentally friendly
  • The JLG 1250AJP also includes a standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.

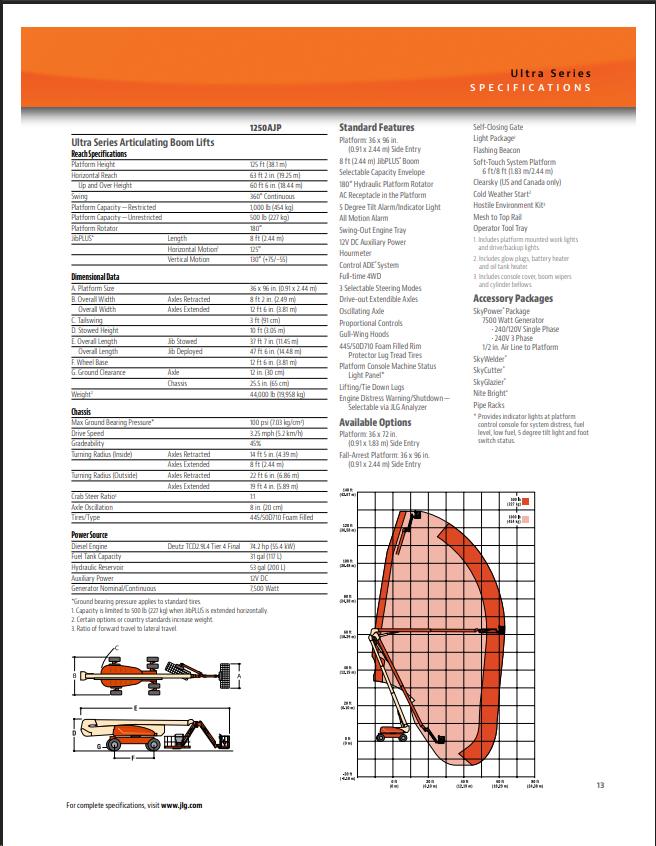

  • Reach Specifications
  • Platform Height 125 ft (38.1 m)
  • Horizontal Reach 63 ft 2 in. (19.25 m)
  • Up and Over Height 60 ft 6 in. (18.44 m)
  • Swing 360 Continuous
  • Platform Capacity Restricted 1,000 lb (454 kg)
  • Platform Capacity Unrestricted 500 lb (227 kg)
  • Platform Rotator 180
  • JibPLUS Length 8 ft (2.44 m)
  • Horizontal Motion1 125
  • Vertical Motion 130 (+75/ 55)
  • Dimensional Data
  • A. Platform Size 36 x 96 in. (0.91 x 2.44 m)
  • B. Overall Width Axles Retracted 8 ft 2 in. (2.49 m)
  • Overall Width Axles Extended 12 ft 6 in. (3.81 m)
  • C. Tailswing 3 ft (91 cm)
  • D. Stowed Height 10 ft (3.05 m)
  • E. Overall Length Jib Stowed 37 ft 7 in. (11.45 m)
  • Overall Length Jib Deployed 47 ft 6 in. (14.48 m)
  • F. Wheel Base 12 ft 6 in. (3.81 m)
  • G. Ground Clearance Axle 12 in. (30 cm)
  • Chassis 25.5 in. (65 cm)
  • Weight2 44,000 lb (19,958 kg)
  • Chassis
  • Max Ground Bearing Pressure* 100 psi (7.03 kg/cm2)
  • Drive Speed 3.25 mph (5.2 km/h)
  • Gradeability 45%
  • Turning Radius (Inside) Axles Retracted 14 ft 5 in. (4.39 m)
  • Axles Extended 8 ft (2.44 m)
  • Turning Radius (Outside) Axles Retracted 22 ft 6 in. (6.86 m)
  • Axles Extended 19 ft 4 in. (5.89 m)
  • Crab Steer Ratio3 1:1
  • Axle Oscillation 8 in. (20 cm)
  • Tires/Type 445/50D710 Foam Filled
  • Power Source
  • Diesel Engine Deutz TCD2.9L4 Tier 4 Final 74.2 hp (55.4 kW)
  • Fuel Tank Capacity 31 gal (117 L)
  • Hydraulic Reservoir 53 gal (200 L)
  • Auxiliary Power 12V DC
  • Generator Nominal/Continuous 7,500 Watt

* Please call us with any questions about our lift boom 125 foot articulated 4x4 rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
