Conveyor System

Conveyor, E-Z Lift 21' Long x 18" Wide

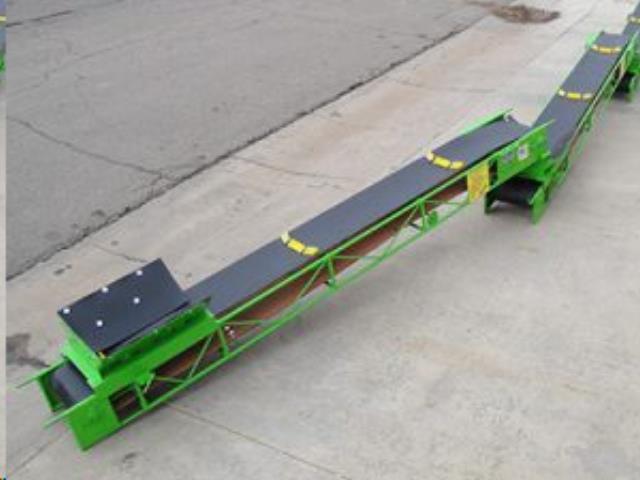

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Quantity:

Additional Information

The E-Z LIFT Troughing-Slider Conveyor is a medium duty conveyor designed to move loose
and packaged materials at inclines up to 30 degrees. The conveyor s unique combination
slider/roller bed makes it E-Z LIFTS s most versatile belt conveyor. Reversible, this conveyor can quickly move materials in and out!
Typical uses include:
Dirt, gravel, sand, aggregates, grain, powders, cement, coal, and sludges. Cartons, shingles, firewood, rolls, and more!
Features Include:
Heavy duty 2-ply rubber covered belt with 2 high cleats on 48 centers
Combination slider/roller bed
7/8 O.D. high strength steel tubing for 12 & 16 models, 1-1/4 O.D. on 21 through 36
models
15 Frame height
Approximate 140 FPM belt speed
Conveyor belt take-up adjustments
Self-cleaning drive and idler belt pulleys
Drive mounted within conveyor frame at discharge end
Custom Baldor electric motor with inline speed reducer for higher torque than direct
drive models
Start/Stop switch
Roller chain and sprocket driven drive pulley
Fork pockets
Operating, maintenance, and safety instructions
Weight 495lbs
CAPACITIES - at 30 incline
Lbs./Cu. Ft. Tons/Hr.
30 27
50 45
75 67

* Please call us with any questions about our conveyor e z lift 21 foot long x 18 inch wide rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
