Riding Rollers

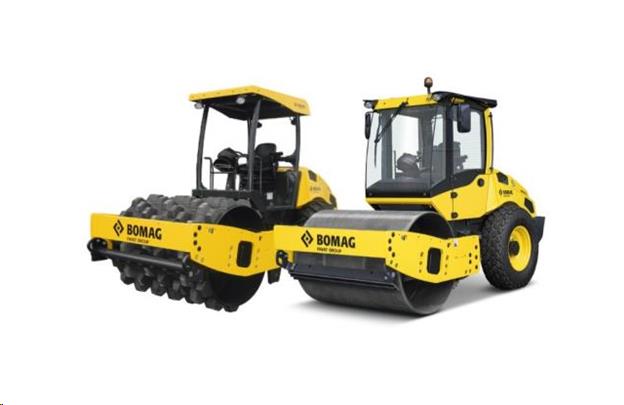

Roller, Ride-On 66" Smooth/Pad Single Drum

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Sakai Bomag Volvo

Model: SV414T BW177D-5 SD75B

Quantity:

Additional Information

Technical data
Sakai SV414T:
DRUM
Type
Pad foot or Sheeps foot
Size (w x d) 67 x 50 | 1,700 x 1,270 mm
OPERATING Weight 15,630 lbs | 7,090 kg
Gradability 63%
VIBRATION Frequency 2,280 vpm/1,800 vpm | 38 Hz/30 Hz
Centrifugal Force 20,905 lbs/26,525 lbs | 93 kN/118 kN
Nominal Amplitude 0.03 ins/.061 ins | 0.75 mm/1.55 mm
ENGINE
Make & Model Cummins QSF 2.8 (EPA-Tier 4)
Horsepower 74HP@ 2400 rpm | 55kW @ 2400 min-1
BRAKING
Systems Hydrostatic Service Brake + SAHR + Combined Footbrake
_________
BOMAG BW177D-50:
Weights
Operating weight with ROPS/FOPS ................... lbs 15355
Axle load, drum ................................................... lbs 9040
Axle load, wheels .................................................. lbs 6315
Static linear load (drum) ...................................... pli (kg) 136.1
Vibratory system
Drive system ........................................................ hydrostatic
Frequency ............................................................ vpm (Hz) 1800/2400 (30/40)
Amplitude ............................................................ in (mm) 0.071/0.035 (1.8/0.9)
Centrifugal force .................................................. lbs (kN) 30375/27000 (135/120)
Drive
Engine manufacturer ............................................ Cummins
Type..................................................................... B3.3T
Cooling ................................................................ water
Number of cylinders ............................................ 4
Performance SAE J 1995 / ISO 3046 .................. hp (kW) 74 (55)
Speed ................................................................... rpm 2600
Fuel ...................................................................... diesel
Electric equipment ............................................... V 12
Drive system ........................................................ hydrostatic
_______________
VOLVO SD75B:
Operating weight (with ROPS, fully ballasted) 15,400 lbs
Operating weight (with ROPS, inc. Cab & inside scraper) 15,856 lbs
Centrifugal force 21,600/29,700 lbf
Vibration frequency 1,850/2,025 v/min
Optional 5x frequency (High Amplitude) 1,398/1,850 v/min
Gradeability 65 %
Rated engine power 75 hp
Amplitude 0.078/0.47 in
Drum width 66 in
Articulation angle +/-38 degree
Oscillation angle +/-12 degree

* Please call us with any questions about our roller ride on 66 inch smooth/pad single drum rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
