Riding Rollers

Roller, Ride-On 66" 10-12 Ton

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Sakai Bomag Volvo

Model: SW774 BW161AD-5 DD110C /105

Quantity:

Additional Information

SAKAI SW774:
Oscillatory/Vibratory Tandem Rollers
High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm. Designed to beat the tender zone on superpave and other perpetual pavement mixes.
Best Compaction Quality and Efficiency
Frequency and amplitude modes can be switched from the seat
Cross-mounted drive and vibration motors help maintain even weight distribution Counter rotation of eccentric weights in the drums cancel horizontal force
Timer, auto or constant operated water spray system
Osc achieves density on no-vibe jobs where structural integrity is of concern.
Operator Comfort
Multi-position operator station (MPOS) (5 positions)
180 easy rotating operator console
Excellent drum edge visibility from the operator seat
Standard Safety Equipment
ROPS
Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
3 inch retractable seat belt
Operator deck safety chains
Turn signals and brake lights
Horn and backup alarm
Electric parking brake w/ interlock
Easy Maintenance
Sprinkler system with plastic water tanks, triple-filtration, removable brass nozzles for ease of maintenance with excellent draining winterization
Easy ground level access to all check and maintenance points
Long life drum isolators
Gear drive Osc/Vibe system (no belts)
Specifications
DRUM
Size (w x d) 66 x 49 | 1,680 x 1,250 mm
OPERATING Weight 22,090 lbs | 10,020 kg
VIBRATION Frequency 2,500 4,000 vpm | 41.7 66.7 Hz
Centrifugal Force 9,665 23,155 lbs | 43 103 kN
Nominal Amplitude 0.012 /.020 | .30 mm/.50 mm
ENGINE
Make & Model Kubota V3800 (Tier 4 Final)
Horsepower 110 Hp @2,400 rpm | 81.8 kW @2,200 rpm
BRAKING
Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake
FLUIDS
Diesel Fuel Capacity 49.1 gal | 186 lit
Water Tank Capacity F/R 79.3 + 118.9 gal | 300 + 450 lit
_________
BOMAG BW161AD-5:
OPerating Weight w/ ROPS 22,487lbs/ Gross 24,353lbs
Track Radius 192.9"
Length (w/o tow hitch) 190.6"
ENGINE Deutz
type TCD 3.6 L4
Stage V Emission /Tier4
4 cylanders
FUEL Capacity 38.3 gallons - Water 198.1 gallons
__________

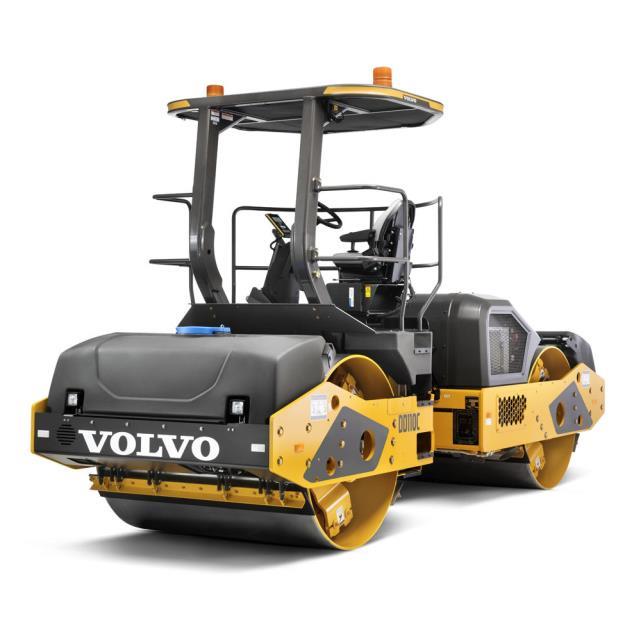

VOLVO DD110C:
Our next generation of asphalt compactors provide you with a smooth, high quality finish for ultimate performance while optimizing fuel efficiency. With the superior drum vibration system and high centrifugal force, the DD110C achieves more work in fewer passes. Unobstructed visibility, operator comfort and auto-reversing eccentrics enhance productivity, making the compactor ideal for large-scale projects.
Operating weight (with ROPS, fully ballasted) - 24,350 lbs
Drum or rolling width - 66.9 in
Rated engine power - 148 hp
Vibration frequency - 3,800 v/min
Amplitude - 0.01/0.0252 in
Overall length - 19 3 ft in
Overall width - 6 0.4 ft in
Overall height - 123"
Configuration - 8 amplitudes
________
VOLVO DD105:
Operating weight (with ROPS, fully ballasted) 22,051 lbs
Drum or rolling width 66 in
Rated engine power 114 hp
Vibration frequency 2,400/3,000 v/min
Amplitude 0.03 in
Overall length 15 3 ft in
Overall width 6 0.5 ft in
Overall height 118 in
Configuration Vibratory

* Please call us with any questions about our roller ride on 66 inch 10 12 ton rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
