Riding Rollers

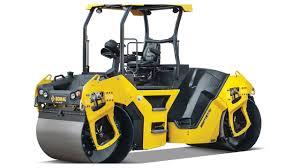

Roller, Ride-On Dbl Drum 58"-65" 7-10 Ton

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Sakai Bomag

Model: SW654 BW141AD-5

Quantity:

Additional Information

SAKAI SW654:
Specifications
DRUM
Size (w x d) 58 X 42 ins
OPERATING
Weight 15,585 lbs
VIBRATION
Frequency Vibe: 3,000 vpm | 50 Hz Osc: 4,000 vpm | 66.7 Hz
Centrifugal Force Vibe: 13,940 lbs | 62 kN Osc: 15,510 lbs | 69 kN
Nominal Amplitude Vibe: .011 | .27 mm Osc: .021 | .53 mm
ENGINE
Make & Model Kubota V3307 T4 Final
Horsepower 73 Hp | 54.6 kW @ 2200 rpm
BRAKING
Systems Hydrostatic Drive System Service Brake + SAHR Parking Brake + Combined
Overall Length 169"
Overall width 64"
Overall Height (without ROPS) 81"
Overall Height (with ROPS) 112"
Drum Diameter / Drum width 1480" / 58"
Ground Clearance 11"
_____________________________________________________________
BOMAG BW141AD-5:
Operating Performance
Operating Weight 15212 lb (6900 kg)
Weight - Front 7848 lb (3560 kg)
Weight - Rear 7363 lb (3340 kg)
Linear Drum Load 132.7 lb/inch (23.7 kg/cm)
Engine
Emission Rating Tier 4 Final
Make / Model Kubota V3307 CR-T
Net Horsepower 74.3 HP @2,400 rpm (55.4 kW @2,400 rpm)
Travel Speed 7.5 mph (12 kmh)
Fuel Tank Capacity 33 U.S. gal (125 L)
Dimensions
Overall Length 173.2 (4400 mm)
Height - With ROPS 88.2 (2240 mm)
Overall Width 65.5 (1664 mm)
Wheelbase 129.9 (3300 mm)
Ground Clearance 9.8 (250 mm)
Drum Width 59.1 (1500 mm)
Rolling Width 65.74 (1670 mm)
Drum Diameter 43.3 (1100 mm)
Drum Shell Thickness 0.6 (16 mm)
Inside Turning Radius 176.4 (4480 mm)

* Please call us with any questions about our roller ride on dbl drum 58 inch 65 inch 7 10 ton rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
