Skid Steers

Skidsteer, 8000# Loader

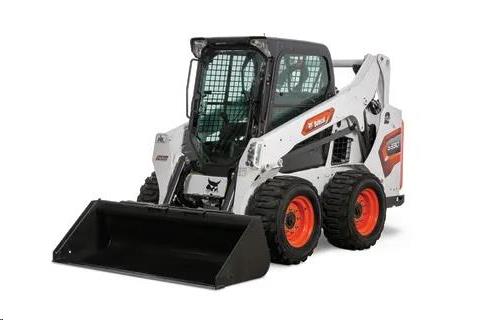

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Kubota Bobcat John Deere

Model: SSV75 S630 S650 324G

Quantity:

Additional Information

SSV75 KUBOTA
SPECIFICATIONS
Engine V3307-CR-TE4
Emission Certification TIER 4
Horsepower (gross) 74.3
Displacement (cu. in.) 203.3
Cylinders 4
Bore Stroke, in. (mm) 3.8(94) X 4.8 (120)
Aspiration TURBOCHARGED
Tipping Load, lbs (kg) 5380
Bucket Breakout Force, lbf (kgf) 5884
Lift Arm Breakout Force, lbf (kgf) 4850
Lift Arm Path VERTICAL
Traveling Speed: High. mph (kph) 11.8
Traveling Speed: Low, mph (kph) 7.4
Traction Force, lbs (kg) 8494
Ground Clearance, in. (mm) 8.1
Loader Hydraulic Flow, GPM (LPM) 20.9
Loader Hydraulic Pressure psi, kgf (cm2) 3271
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Hydraulic Tank, gal (l) 20.9 / 30.4
Fuel Tank, gal (l) 26.9
Operating Weight, lbs (kg) 8245
Overall Height, in. (mm) 81.3
Overall Width, in. (mm) Width over Wheels: 71.8in (1823), Width with Standard Bucket: 75in (1905)
Overall Length, in. (mm) Without Bucket: 115.0in (2920), With Bucket: 144.1in (3660)
Reach at Maximum Height, in. (mm) 36.9
Height to Hinge Pin, in. (mm) 128.3
________
S630 BOBCAT
Air-Ride Seats: Achieve optimum suspension comfort with the optional air-ride seat. Air suspension adjusts to your weight, helping you smooth out the bumps on your jobsite and increasing your comfort.
Better Visibility: Visibility has been significantly increased in all directions. The rear window is 14% larger and the size of the top window is now 43% larger, providing a big advantage when loading a truck or using attachments with raised lift arms.
Cab-Forward Design: The new design moves the operator area closer to the attachment, and gives you a better vantage point for your work area.
Convenient Engine Speed Controls: The engine speed control has been moved out in front of the operator, on the right-hand corner post of the cab.
Convenient Storage: New storage bins are located throughout the machine. Store items wherever it's convenient!
Cup Holders: The cup holders hold 20oz. soda bottles all the way up to super-sized cups and coffee mugs.
Deluxe Instrumentation Panel: This intelligent Bobcat option helps you prevent theft with keyless start and enables better operation by closely monitoring and interacting with y our machine. A new 7-inch LED screen with full-color capability offers increased readability and interaction. Easy-to-read virtual sweep gauges allow you to quickly read and understand operation levels.
Easy-Pull, Easy-Secure Side Window: Simply pull the new window knob to slide the side window to five lockable positions. The window stays exactly where you want it to get consistent air flow.
Extra Elbow Room, Easier Cleaning: Windows are mounted on the outside of the Roll-Over Protection System (ROPS) - which provides extra elbow room in the cab, and makes window cleaning much faster.
Fingertip Controls: Attachments are more comfortable to operate, controlled easily and adjusted simply from the fingertip controls.
Flexible Joystick Positioning: Joystick mounts on our SJC-equipped machines slide forward and backward independent of the seat, adjusting to the individual comfort positions of different-sized operators. As your suspension seat moves up and down, the joysticks move with the seat for added comfort while operating.
Foot Well Cleaning Access: Allows easier removal of mud and debris that enters the cab through two additional cleanout holes in the foot well.
Large Entry/Exit: Bobcat re-engineered the largest cab front opening in the industry and now made it bigger! On machines with enclosed cabs, Bobcat provides a large swing open door to make it easier to enter and exit the cab. A lowered door threshold gives you increased visibility to your attachment and the surrounding work area - making it easier to see and do your work.
More Room: Our stronger, narrower loader arms make a wider cab possible, with up to 20% more interior space than competitors, keeping you comfortable.
Operator Switches: Puts important controls in front of you on the cab corner posts.
Seat-Mounted Joystick Control: Provides flexible control through seat-mounted joysticks on models with optional Selectable Joystick Controls (SJC); as the suspension seat shifts up and down, the joysticks move with the seat. Joystick mounts shift forward and backward, independent of the seat.
Suspension Seat: Other comfort items include an optional fully adjustable suspension seat, adjusting easily to the operator's weight.
Engine Cooling - Liquid
Engine Fuel - Diesel
Turbocharged Engine - Yes
Performance Rated Operating Capacity (SAE) - 2180 lbs Operating Weight - 7707 lbs Travel Speed (2-speed option) - 12.3 mph
Capacities Fuel Tank - 27.3 gallon
Hydraulic System: System Relief @ Quick Couplers - 3500 psi Auxiliary High Flow - 30.5 GPM
Dimension: Length - 136.8 in Length with Standard Bucket - 74 in Height with Operator Cab - 81.3 in Reach @ Maximum Height - 21.4 in Wheelbase - 45.3 in
____________________
Bobcat S650
Horsepower 74 hp
Rated Operating Capacity (ISO) 2,690 lb
Operating Weight 8061 lb
Auxiliary Std Flow 23 gal/min
Joystick Control Optional
Engine
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Turbocharged Engine yes
Rated Operating Capacity (ISO) 2,690 lb
Tipping Load 5380 lb
Operating Weight 8061 lb
Travel Speed 7.1 mph
Travel Speed (2-speed option) 12.3 mph
Fuel Tank 23.9 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Dimension
Length 136.8 in
Length without Attachment 108.4 in
Length with Standard Bucket 136.8 in
Width 72.1 in
Width (with bucket) 74 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 124 in
Reach @ Maximum Height 31.5 in
Turning Radius 82.9 in
Wheelbase 45.3 in

Also check the following item(s) related to the above:

* Please call us with any questions about our skidsteer 8000 loader rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
