Skid Steers

Track Loader, Stand-On Compact

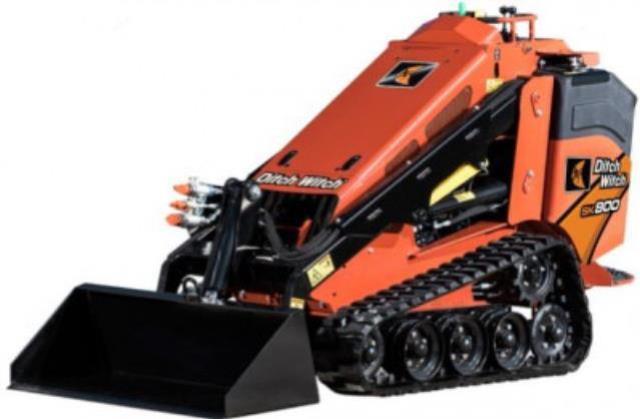

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Ditch-Witch

Model: SCL1000 SK600

Quantity:

Additional Information

KUBOTA SCL1000
24.8 HP Turbo-charged
Kubota engine provides
quiet operation, high
altitude performance
and requires no DPF.
Hydraulic pump
Vertical lift loader arms
reach higher and further
than the competition with
a hinge pin height of 84.7"
and a reach of 26"
(at 45 dump angle).
1000 lbs. ROC combined with
15 gpm auxiliary hydraulic
flow make for a powerful and
productive compact utility loader.
Works in zero clearance yards
with low impact wide track design
(4.0 psi) minimizing damage to
grass or landscaping.
4.9 mph Best in class travel speed
_______
MODEL - DITCH WITCH SK600
DIMENSIONS (STD)
Operating height, max std. bucket 103 in
Hinge pin height, max 76 in
Overall height of machine 54 in
Overall length of machine, std. bucket 105 in
Overall length of loader, no attachment 80 in
Angle of departure 27
Machine width 33.5 in
Ground clearance, min
Center 8.5 in
Side 4 in
PERFORMANCE
Ground drive speed
Forward/reverse 4.1 mph
Ground pressure
7-in (180-mm) tracks 4.8 psi 0.33 bar
Tipping capacity 1,725 lb
Operating capacity (35% of tipping capacity) 600 lb
Machine weight (no attachment,
fluids full) 2,418 lb
HYDRAULIC SYSTEM
Auxiliary circuit, double gear pump
Flow rate 12 gpm
Pressure 3,000 psi
Ground drive, dual hydostatic pumps
Flow rate 12.5 gpm n
Pressure 3,625 psi
POWER U.S. METRIC
Engine Kubota D902-E4B
Fuel Diesel
Number of cylinders 3
Displacement 54.8 in3 0.898 L
Bore 2.83 in 72 mm
Stroke 2.9 in 73.6 mm
Gross power rating (SAE J1995) 24.8 hp 18.5 kW
Rated speed 3,600 rpm
Emissions compliance EPA Tier 4 EU Stage IIIA
FLUID CAPACITIES
Hydraulic reservoir capacity 9.2 gal
Engine oil, w/filter 5 qt
Fuel tank capacity 10.5 gal
NOISE LEVEL
Operator ear sound pressure 90 dBA
Sound power 104 dBA
BATTERY
SAE reserve capacity rating 110 min
SAE cold crank @ 0 F (-18 C) 800 amps
Electrical system 12V
_________
SK750
Make Ditch Witch
Model SK750
Type Mini Track Loader
Standard Flow 12 GPM
High Flow
Pressure 3000 PSI
Hydraulic HP Standard Flow 14. HP
Hydraulic HP High Flow 24.5 HP
Engine HP 24. HP
Width 36 (42) in.
Lift Capacity at 35% 800 lb.
Lift Capacity at 50% 1142. lb.
Operating Weight 2890 lb.
_____
VERMEER S450TX
Design
Stand-on / track-drive
Length with Standard Bucket 95.4 in
Length without Standard Bucket 75.4 in
Width with Standard Bucket 42 in
Width Without Standard Bucket 35.8 in
Height 53.4 in
Height (to Hinge Pin) 72 in
Ground Clearance 6.5 in
Weight (Standard Bucket, Diesel Engine) 2430 lbs
Weight (No Bucket, Diesel Engine) 2300 lbs
Make and Model Kubota D902
Fuel Type Diesel
Fuel Tank Capacity 7.5 gal
Gross Horsepower 24.8 hp
Cooling System Liquid
Maximum Angle of Inclination 30 deg
Rated Operating Capacity (SAE) 500 lbs
Ground Pressure (Narrow Tracks) 3.4 psi
Ground Pressure (Wide Tracks) 2.7 psi
Travel Speed 3.5 mph
OPERATIONAL Steering
Single, pilot operated joystick
Lift Single, dual axis Curl Single, dual axis
HYDRAULIC SYSTEM
Hydraulic System Flow 12.5 gpm
Hydraulic System Pressure 2950 psi
Tank capacity 8 gal

* Please call us with any questions about our track loader stand on compact rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
