Excavator, 35,000# Zero Tail Swing

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: John Deere Takeuchi Komatsu

Model: 135G FTR, PC138, TB2150CL

Quantity:

Additional Information

TB2150R-CL - Takeuchi
OPERATING PERFORMANCE
Operating Weight - Cab (Rubber) 34,215 lb
Operating Weight - Cab (Steel) 34,435 lb
Operating Weight - Cab (Segmented Rubber) 34,403 lb
Maximum Bucket Breakout Force 22,256 lb
Maximum Arm Digging Force 13,490 lb
Arm Length 8 ft 3.6 in
Slew Speed 11.0 rpm
Traction Force 35,230 lb
Ground Pressure - Cab (Rubber) 6.6 psi
Ground Pressure - Cab (Steel) 6.7 psi
Ground Pressure - Cab (Segmented Rubber) 6.7 psi
Max Travel Speed
Low Range 1.8 mph
High Range 3.4 mph
ENGINE
Make / Model Deutz / TCD 3.6 L4
Displacement 221.0 cu in
Horsepower @ 2,000 rpm 114.0 hp
Maximum Torque @ 1,600 rpm 338 ft-lb
HYDRAULIC SYSTEM
Total Hydraulic Flow 78.9 gpm
Auxiliary Flow - Primary Circuit 59.2 gpm
Auxiliary Flow - Secondary Circuit 14.5 gpm
Hydraulic System Pressure 4,974 psi
FLUID CAPACITIES
Engine Lubrication 10.6 qt
Cooling System 28.5 qt
Fuel Tank Capacity 58.4 gal
DEF Fluid Tank Capacity 5.3 gal
Fuel Consumption (65% of Full Load) 3.88 gal / hr
Hydraulic Reservoir Capacity 26.9 gal
MACHINE DIMENSIONS
Maximum Reach 28 ft 10.1 in
Maximum Reach at Ground Level 28 ft 5.2 in
Maximum Digging Depth 19 ft 9.4 in
Maximum Dumping Height 3 ft 6.4 in
Transport Length 25 ft 6.5 in
Transport Height 9 ft 8.5 in
Overall Width (Rubber) 8 ft 2.0 in
________

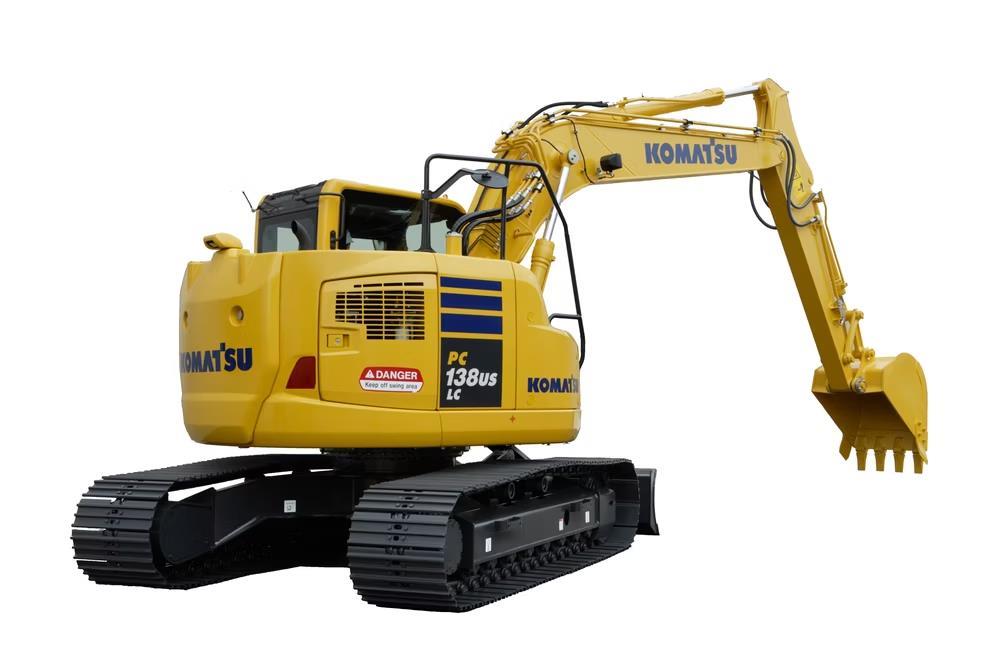

Komatsu PC138
Model Komatsu SAA4D95LE-7*
Type Water-cooled, 4-cycle, direct injection
Aspiration Variable flow, turbocharged, air-to-air aftercooled
Number of cylinders 4
Bore 3.74 in
Stroke 4.53 in
Piston displacement 199 in
Horsepower:
SAE J1995 / Gross 97.3 HP
ISO 9249 / SAE J1349 / Net 97.2 HP
Rated rpm 2,050
Fan at maximum speed /Net 90.9 HP
Fan drive method for radiator cooling Mechanical with viscous clutch
Governor All-speed control, electronic
Operating Weight 37,547 lbs
_________

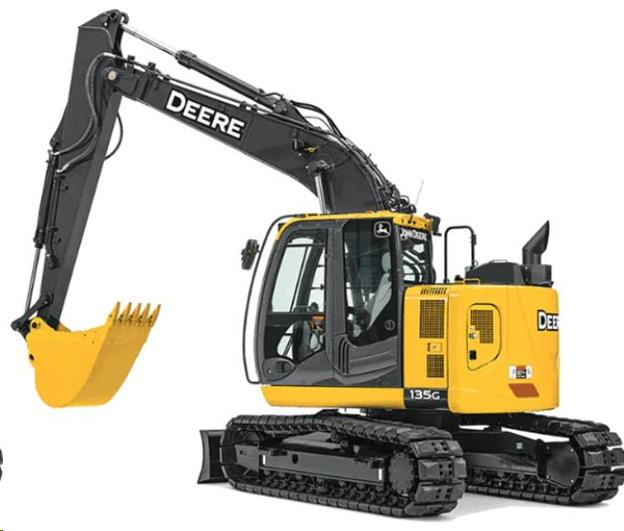

John Deere 135G Excavator
DRIVELINE:
Emission Rating - Tier 4 / Stage IV
Engine Manufacturer - Isuzu
Number Of Cylinders - 4
Displacement, ltr - 3
Rated speed, rpm - 2000
Engine Output - Net, hp - 101
Number Of Carrier Rollers - Each Side - 1
Number Of Track Rollers - Each Side - 7
Track Shoe Width, inches - 24
DIMENSIONS:
Transport Length Mono Boom, ft/in - 24 ft 2 in
Transport Height - Maximum, ft/in - 9 ft 5 in
Overall Undercarriage Width, ft/in - 8 ft 6 in
Track Length On Ground, ft/in - 9 ft 5 in
Overall Undercarriage Length, ft/in - 11 ft 9 in
Tailswing Radius, ft/in - 4 ft 11 in
Ground Clearance, inches - 16
Width over fixed tracks, ft/in - 8 ft 6 in
Track Gauge, ft/in - 6 ft 6 in
Digging Reach - Mono Boom, ft/in - 27 ft 6 in
Ground Level Reach - Mono Boom, ft/in - 27 ft
Dig Height - Mono Boom, ft/in - 30 ft 5 in
Dump Height - Mono Boom, ft/in - 22 ft 4 in
Dig depth - 8'ft flat bottom, ft/in - 17 ft 3 in
Dig Depth - Mono Boom, ft/in - 18 ft
Standard Dipper, ft/in - 8 ft 3 in
CAPACITIES:
Fuel Tank, gallons US - 58
Hydraulic Tank, gallons US - 15.9
Number Of Batteries - 2
Voltage, V 24
PERFORMANCE:
Ground Bearing Pressure, PSI - 5.37
Swing Speed, rpm - 13.3
Swing Torque, lbf / ft - 25000
Travel Speed - High, mph - 3.4
Tractive Force, lbf - 24729
Dipper Tearout, lbf - 15510
Bucket Breakout, lbf - 23380
Gradeability, % - 70
Total Flow, gallons US / min - 56
Bucket Pressure, PSI - 4975
Boost Pressure, PSI - 5265
WEIGHTS:
Operating Weight, lbs - 31060
