Excavators

Excavator, 55,000# Zero Tail Swing

Manufacturer Link: <Click Here>

Image for reference only
Actual item may look different
Click on image for larger view

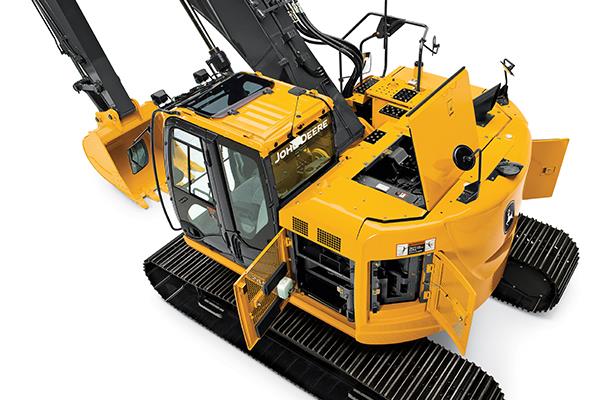

Click on above thumbnails for alternate view

Manufacturer: John Deere

Model: 245P

Quantity:

Additional Information

JOHN DEERE 245P
Mid-Size Excavator
DRIVELINE
Emission Rating Tier 4 / Stage IV
Engine Manufacturer Isuzu
Number Of Cylinders 4
Displacement, ltr (Inches ) 5.19 (317)
Rated speed, rpm 2000
Engine Output - Net, kW (hp) 119 (159)
Number Of Carrier Rollers - Each Side 2
Number Of Track Rollers - Each Side 8
Track Shoe Width, mm (inches) 700 (28)
Dimensions
Transport Length Mono Boom, mm (ft/in) 9120 (29 ft 11 in)
Transport Height - Maximum, mm (ft/in) 3030 (9 ft 11 in)
Overall Undercarriage Width, mm (ft/in) 3090 (10 ft 1 in)
Track Length On Ground, mm (ft/in) 3660 (12 ft )
Overall Undercarriage Length, mm (ft/in) 4460 (14 ft 7 in)
Tailswing Radius, mm (ft/in) 1680 (5 ft 6 in)
Ground Clearance, mm (inches) 450 (18)
Width over fixed tracks, mm (ft/in) 3090 (10 ft 1 in)
Track Gauge, mm (ft/in) 2390 (7 ft 10 in)
Digging Reach - Mono Boom, mm (ft/in) 10110 (33 ft 2 in)
Ground Level Reach - Mono Boom, mm (ft/in) 9900 (32 ft 6 in)
Dig Height - Mono Boom, mm (ft/in) 11230 (36 ft 10 in)
Dump Height - Mono Boom, mm (ft/in) 8290 (27 ft 2 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) 6410 (21 ft )
Dig Depth - Mono Boom, mm (ft/in) 6620 (21 ft 8 in)
CAPACITIES
Fuel Tank, ltr (gallons (US)) 380 (100)
Hydraulic Tank, ltr (gallons (US)) 130 (34.3)
PERFORMANCE
Ground Bearing Pressure, kPa (PSI) 45 (6.53)
Swing Speed, rpm 11.8
Swing Torque, kNm (lbf / ft) 68 (50000)
Travel Speed - High, kph (mph) 5.5 (3.4)
Tractive Force, kN (lbf) 203 (45640)
Arm Tearout, kN (lbf) 114 (25630)
Bucket Breakout, kN (lbf) 158 (35520)
Gradeability, % 70
End lift - 7.5m Reach, kg (lbs) 5590 (12050)
Side lift - 7.5m Reach, kg (lbs) 3390 (7330)
Total Flow, lt/min (gallons (US) / min) 613 (162)
Bucket Pressure, bar (PSI) 343 (4970)
Boost Pressure, bar (PSI) 380 (5510)
WEIGHTS
Operating Weight, kg (lbs) 25500 (56218)
