Excavators

Excavator, 2,500#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA

Model: TB210R KX008

Quantity:

Additional Information

TB210
OPERATING PERFORMANCE
Operating Weight 2,535 lb
Max. Bucket Breakout Force 2,518 lb
Max. Arm Digging Force 1,439 lb
Arm Length 2 ft 10.6 in
Slew Speed 10.0 rpm
Traction Force 2,878 lb
Ground Pressure 4.1 psi
Travel Speed - Low 1.2 mph
Travel Speed - High 2.3 mph
HYDRAULIC SYSTEM
Total Hydraulic Flow 5.9 gpm
Auxiliary Hydraulic Flow 5.9 gpm
Hydraulic System Pressure 2,680 psi
ENGINE
Model / Make Kubota / D722-E4B
Displacement 43.9 cu in
Horsepower @ 2,200 rpm 11.7 hp
Max. Torque @ 1,900 rpm 26.4 ft-lb
MACHINE DIMENSIONs
Maximum Reach 10 ft 9.4 in
Maximum Reach at Ground Level 10 ft 6.8 in
Maximum Digging Depth 5 ft 9.1 in
Maximum Vertical Digging Depth 4 ft 10.0 in
Maximum Dig Height 9 ft 9.5 in
Maximum Dumping Height 6 ft 11.5 in
Front Swing Radius 4 ft 4.0 in
Front Swing Radius with Boom Offset 3 ft 2.5 in
Tail Swing (Slew) Radius 2 ft 0.0 in
Transport Length 9 ft 8.3 in
Transport Height 7 ft 2.2 in
Ground Clearance 6.2 in
Undercarriage Length 4 ft 4.2 in
Track Width (Rubber) 7.1 in
Undercarriage Width - Track Retracted 29.5 in
Undercarriage Width - Track Extended 40.2 in
____________________

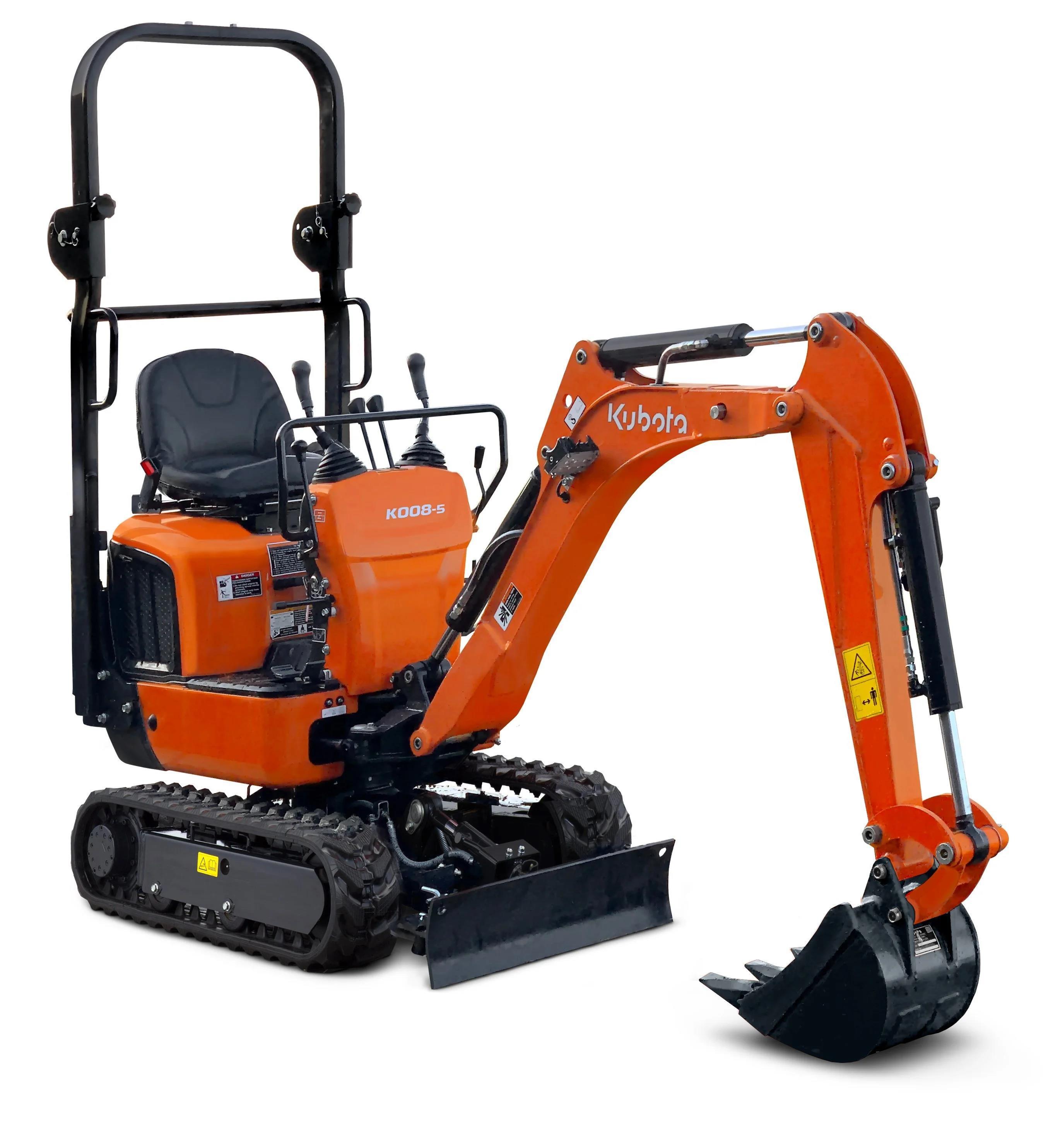

Kubota KX008
SPECIFICATIONS
Engine Model Kubota D722-E4
Horsepower (gross) 10.3
Displacement 4.8
Overall Length, ft 9ft 0 in
Overall Height, ft 7ft 4 in
Overall Width, ft 2ft 10 in / 2ft 7 in
Min. Ground Clearance, in 2.9 in
Crawler Length, ft 4ft
Pump Capacity, GPM 1012
Auxiliary Hydraulics Flow Rate, GPM 5.5
Bucket Breakout Force, lbs 2205
Arm Breakout Force, lbs 1012
Traveling Speed: High, mph 2.5
Traveling Speed: Low, mph 1.2
Ground Contact Pressure psi, (cm2) 4.1
Blade Width, ft 2ft 4 in/ 2ft 10 in

* Please call us with any questions about our excavator 2 500 rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
