Excavators

Excavator, 18,500#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA

Model: TB370/280/290 KX080

Quantity:

Additional Information

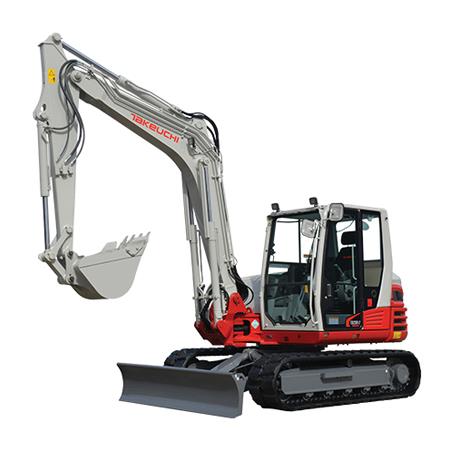

TB370
OPERATING PERFORMANCE
Operating Weight 14,850 lb (6,735 kg)
Slew Speed 8.8 rpm (8.8 min-1)
Travel Speed - Low Range 1.6 mph (2.5 km / hr)
Travel Speed - High Range 2.9 mph (4.7 km / hr)
Gradeability 30 deg
Ground Pressure - Cab (Rubber) 5.4 psi (37.0 kPa)
Max Bucket Breakout Force 14,613 lb (6,628 kg)
Max Arm Digging Force 6,609 lb (2,998 kg)
Traction Force 16,479 lb (7,475 kg)
Boom Swing Angle (Left/Right) 79 deg / 51 deg
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit 31.7 gpm (120.0 L / min)
Auxiliary Flow - Secondary Circuit 12.3 gpm (46.6 L / min)
Hydraulic System Pressure 3,550 psi (24.5 MPa)
ENGINE
Make / Model Kubota V2607-CR-TE5B
Displacement 159.6 cu in (2,615 ml)
Horsepower @ 2,200 rpm 56.9 hp (42.4 kW )
Maximum Torque @ 1,500 rpm 168.1 ft-lb (227.9 Nm)
FLUID CAPACITIES
Engine Lubrication 9.5 qt (9.0 L)
Cooling System 11.6 qt (11.0 L)
Fuel Tank Capacity 29.0 gal (110.0 L)
Hydraulic Reservoir Capacity 17.3 gal (65.5 L)
MACHINE DIMENSIONS
Maximum Reach 21' 11.4" (6,690 mm)
Maximum Reach at Ground Level 21' 6.4" (6,565 mm)
Maximum Digging Depth 13' 4.7" (4,085 mm)
Maximum Vertical Digging Depth 12' 6.2" (3,815 mm)
Maximum Height of Cutting Edge 21' 0.7" (6,420 mm)
Maximum Dumping Height 14' 11.0" (4,545 mm)
Front Swing Radius 8' 5.5" (2,580 mm)
Front Swing Radius with Boom Offset 6' 8.3" (2,040 mm)
Slew Radius 4' 9.4" (1,455 mm)
Transport Length 19' 5.2" (5,925 mm)
Transport Height 8' 4.0" (2,540 mm)
Upper Structure Overall Width 6' 10.5" (2,095 mm)
Ground Clearance 13.2" (335 mm)
Undercarriage Length 8' 5.4" (2,575 mm)
Undercarriage Width 6' 10.7" (2,100 mm)
Track Width (Rubber) 15.7" (400 mm)
Hydraulic System Capacity 36.7 gal (139.0 L)
Tier 4 Final Compliant
______
TB280FR
OPERATING PERFORMANCE
Operating Weight - Cab (Rubber) 18,810 lb
Operating Weight - Cab (Steel) 19,240 lb
Maximum Bucket Breakout Force 16,335 lb
Maximum Arm Digging Force 7,037 lb
Arm Length 6 ft 7.0 in
Slew Speed 10.0 rpm
Traction Force 19,783 lb
Ground Pressure - Cab (Rubber) 5.5 psi
Travel Speed - Low Range 1.7 mph
Travel Speed - High Range 3.2 mph
ENGINE
Make / Model Yanmar / 4TNV98CT
Displacement 202 cu in
Horsepower @2,000 rpm 69.2 hp
Maximum Torque @ 1,300 rpm 22.7.2 ft-lb
MACHINE DIMENSIONS
Maximum Reach 23 ft 7.2 in
Maximum Reach at Ground Level 23 ft 1.4 in
Maximum Digging Depth 14 ft 11.0 in
Maximum Vertical Digging Depth 11 ft 5.5 in
Maximum Dig Height 21 ft 2.0 in
Maximum Dumping Height 14 ft 8.4 in
Front Swing Radius 9 ft 5.4 in
Front Swing Radius with Boom Offset 5 ft 3.5 in
Tail Swing (Slew) Radius 4 ft 2.4 in
Transport Length 20 ft 7.4 in
Transport Height 8 ft 11.4 in
Ground Clearance 12.3 in
Undercarriage Length 9 ft 4.0 in
Track Width (Rubber) 17.7 in
Undercarriage Width 7ft 7.0 in
_
TB290
OPERATING PERFORMANCE:
Operating Weight (w 165 lb operator) Cab
Rubber Track - 18,780 lb
Steel Track - 19,604 lb
Maximum Digging Depth - 15'
Maximum Dump Height - 17' 3"
Maximum Digging Radius - 24' 5"
Maximum Bucket Digging Force - 16,568 lb
Maximum Arm Digging Force - 8,138 lb
Arm Length - 7'
Slew speed - 10.3 rpm
Traction Force - 19,783 lb
Sound Level (noise) - 73 dB
DIMENSIONS:
Max Dig Depth - 15'
Max Dump Height 17' 3"
Max Reach Ground Level - 24' 5"
Max Vertical Dig Depth - 12' 6"
Width - 7' 7"
Height - 8' 5"
Length (Transport) - 21' 10"
Ground Clearance - 15"
Dozer Blade Height - 19.7"
Independent Boom Swing Angle - 70 Left
Minimum Front Swing Radius (Straight) - 8' 2"
Minimum Front Sing Radius (Offset) - 6' 8"
Tail Swing Radius - 5' 8"
__

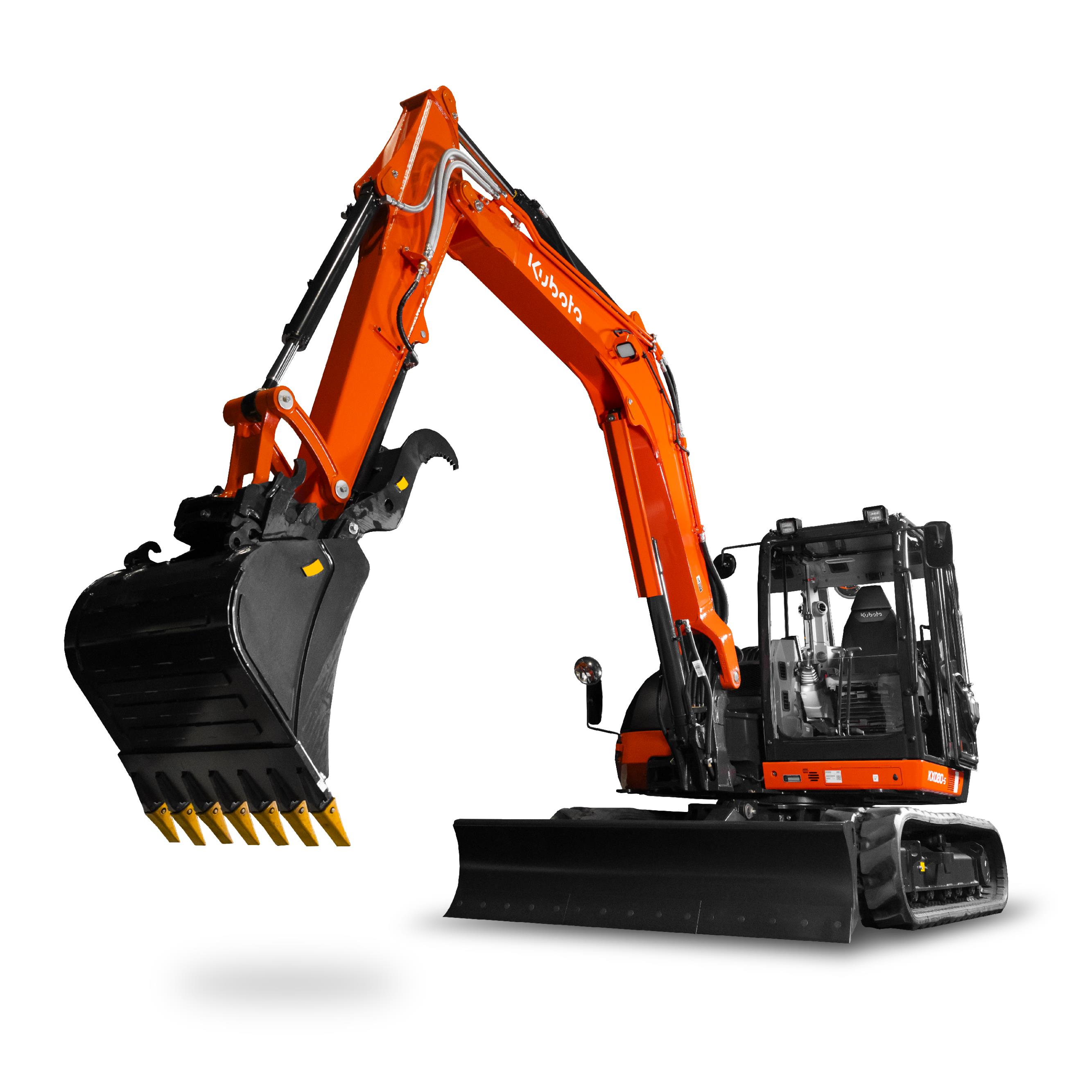

KX080
Engine: Model Kubota V3307-CR-TE4
HP 66.6
Overall Length 21' 1.9
Overall Height 8' 4"
Overall Width 7' 2.6"
Min, ground clearance 15.4"
Auxiliary hydraulic flow 26.4 gpm
Max. breakout force 14660 lbf
Shoe width 17.7"
Operating Weight Rubber / Steel 18280lbs / 18390 lbs
