Excavators

Excavator, 4,000#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA

Model: TB216R KX018 U17

Quantity:

Additional Information

Takeuchi TB216
OPERATING PERFORMANCE
Operating Weight 3,900 lb
Max. Bucket Breakout Force 4,250 lb
Max. Arm Digging Force 1,843 lb
Arm Length 3 ft 8.5 in
Slew Speed 9.2 rpm
Traction Force 4,361 lb
Ground Pressure 4.3 psi 29.4 kPa
Travel Speed - Low 1.4 mph
Travel Speed - High 2.6 mph
HYDRAULIC SYSTEM
Total Hydraulic Flow 13.4 gpm
Auxiliary Hydraulic Flow 8.9 gpm
Hydraulic System Pressure 3,046 psi
ENGINE
Model / Make Yanmar / 3TNV74
Displacement 60.2 cu in
Horsepower @ 2,400 rpm 15 hp
Max. Torque @ 1,800 rpm 38.2 ft-lb
MACHINE DIMENSIONS
Maximum Reach 13 ft 5.0 ft
Maximum Reach at Ground Level 13 ft 2.9in
Maximum Digging Depth 7 ft 10.0 in
Maximum Vertical Digging Depth 6 ft 9.1 in
Maximum Dig Height 12 ft 3.2 in
Maximum Dumping Height 8 ft 10.5 in
Front Swing Radius 4 ft 10.3 in
Front Swing Radius with Boom Offset 3 ft 9.4 in
Tail Swing (Slew) Radius 3 ft 6.3 in
Transport Length 12 ft 8.3 in
Transport Height 7 ft 4.8 in
Ground Clearance 8.1 in
Undercarriage Length 4 ft 11.9 in
Track Width (Rubber) 9.0 in
Undercarriage Width - Track Retracted 38.6 in
Undercarriage Width - Track Extended 51.2 in
OPERATOR'S STATION
ROPS / TOPS / FOPS Four Post Canopy
Pattern Change Valve (ISO or SAE)
Suspension Seat with Fore and Aft Adjustments
Auxiliary Hydraulics Controlled with Foot Pedal
2" Retractable Seat Belt
3" Non-retractable Seat Belt (optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement Piston Pumps
Cushioned Boom and Swing Cylinders
Pilot Operated Joystick Controls
Hydraulic Oil Cooler
Steel Hydraulic Tank with Fluid Level Sight Gauge
Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation
Top Mount Boom Cylinder
Hydraulic Hoses Protected Inside of Boom and Arm
Long Arm with Integrated Thumb Mount
_________

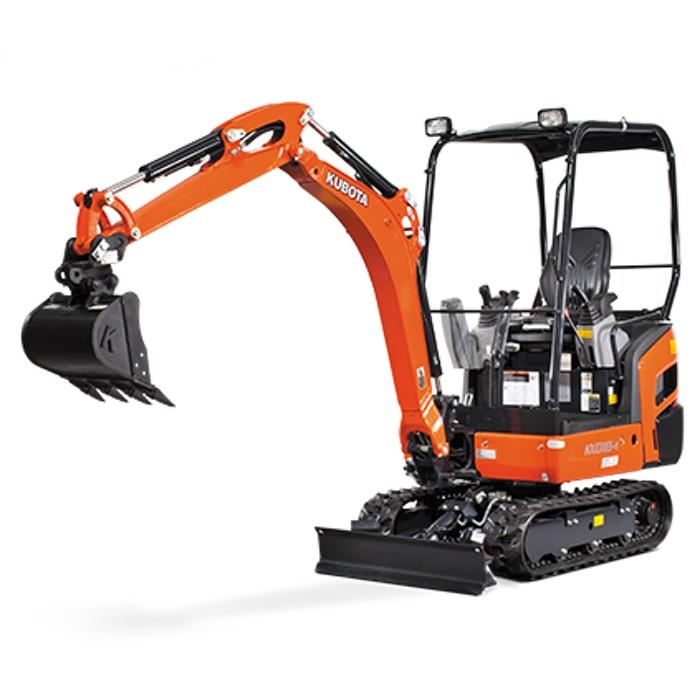

KX018
SPECIFICATIONS
Engine Model Kubota D902-BH-E4
Horsepower (gross) 16.0
Displacement (cu. in.) 54.8
Overall Length, ft 12ft 2.1 in
Overall Height, ft 7ft 7.7 in
Overall Width, ft 4ft 3.2 in
Min. Ground Clearance, in 6.3 in
Crawler Length, ft 5ft 2.6im
Pump Capacity, GPM 7.4
Auxiliary Hydraulics Flow Rate, GPM 7.4
Bucket Breakout Force, lbs 3594
Arm Breakout Force, lbs 1852
Traveling Speed: High, mph 1.4
Traveling Speed: Low, mph 2.5
Ground Contact Pressure psi, (cm2) 3.7
Blade Width, ft 1ft 3.2in
Blade Height, in 9.1in
Hydraulic Oil Reservoir / System, gal 1.1
Fuel Reservoir, gal 5.6
Operating Weight, lbs 3748
_______________________________________________
U17
16.1 Hp
.89 Displacement
Length Overall 11'.7"
height Overall 7'8"
Min ground CClearance 5.9"
Operating Weight 3703 Lbs
