Excavators

Excavator, 6,500#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA KOMATSU

Model: TB230R KX71 PC27 PC30

Quantity:

Additional Information

TB230
OPERATING PERFORMANCE
Operating Weight
Canopy 6,607 lbs (2,885 kg)
Maximum Digging Depth 9 ft 3.6 in (2,835 mm)
Maximum Dump Height 10 ft 7.2 in (3,230 mm)
Maximum Reach 15 ft 10.9 in (4,850 mm)
Maximum Bucket Breakout Force 6,471 lbs (2,935 kg)
Maximum Arm Digging Force 2,900 lbs (1,325 kg)
Arm Length 4 ft 9 in (1,445 mm)
Slew speed 10.3 rpm
Traction Force 6,340 lbs (2,876 kg
ENGINE
Make/Model Yanmar / 3TNV88F
Tier Rating EPA Final Tier 4
Cylinders/Displacement 3 / 81.0 cu in (1.3 L)
Horsepower 24.4 hp (18.2 kW)
Rated Engine Speed 2,400 rpm
Maximum Torque 63.0 ft-lb @ 1,440 rpm (85.3 Nm)
Engine Lubrication 5.0 qt (4.7 L)
Cooling System 4.2 qt (4.0 L)
Fuel Tank Capacity 14.0 gal (53.0 L)
Fuel Consumption (65% of full load) 0.8 gal / hr (3.3 L / hr)
Electrical System 12 volts / 40 amps
HYDRAULIC SYSTEM
Pump Type Two Piston Pumps w/ Two Gear Pumps
Total Hydraulic Flow 24.2 gal / min (91.6 L)
Primary Auxiliary Hydraulic Flow 13.4 gal / min (50.6 L / min)
System Operating Pressure 3,046 psi (21 MPa)
Hydraulic Reservoir Capacity9.2 gal (35.0 L)
Hydraulic System Capacity14.8 gal (56.0 L)
DIMENSIONS
Maximum Dig Depth 9 ft 3.6 in (2,835 mm)
Maximum Dump Height 10 ft 7.2 in (3,230 mm)
Maximum Reach Ground Level 15 ft 5.4 in (4,710 mm)
Maximum Vertical Dig Depth 7 ft 0.8 in (2,153 mm)
Overall Width 4 ft 9.5 in (1,460 mm)
Transport Height 8 ft 3.9 in (2,540 mm)
Transport Length 15 ft 0.9 in (4,595 mm)
Ground Clearance 11.9 in (305 mm)
Dozer Blade Height 11.8 in (300 mm)
Independent Boom Swing Angle 78 Left / 58 Right
Minimum Front Swing Radius (Straight) 6 ft 2.7 in (1,895 mm)
Minimum Front Swing Radius (Offset) 4 ft 11.2 in (1,505 mm)
Tail Swing Radius 4 ft 4.4 in (1,330 mm
________

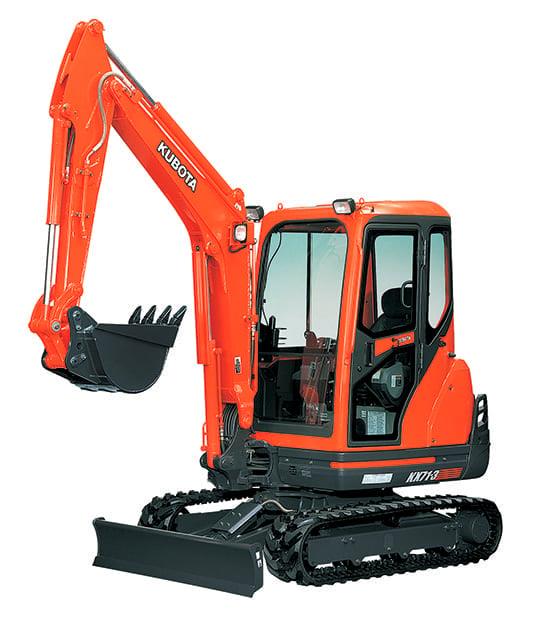

KX71
SPECIFICATIONS
Model KX71- 3S
Type of ROPS / OPG (TOP Guard, Level ) Canopy / Cab
Type of tracks Rubber
Engine
Model V1505-BH
Output (SAE J1995 gross) HP (kW)/rpm 24.4 (18.2) / 2250
Output (SAE J1349 net) HP (kW)/rpm 23.1 (17.2) / 2250
Displacement cu. in. (cc) 91.4 (1498)
Dimensions
Overall length ft. in. (mm) 14'11'' (4550)
Overall height Canopy / Cab ft. in. (mm) 8' (2430) / 7'11'' (2410)
Overall width ft. in. (mm) 4'11'' (1500)
Min. ground clearance ft. in. (mm) 11'' (285)
Hydraulic system
Pump capacity GPM (/min) 8.32 (31.5) Piston x 2 / 4.76 (18.0) Gear x 1
Auxiliary hydraulic flow GPM (/min) 13.1 (49.5)
Max. breakout force Bucket / Arm lbs. (kgf) 6350 (2880) / 3285 (1490)
Drive system
Travel speed Low / High mph (km /h) 1.8 (2.8) / 2.9 (4.6)
Max.traction force Low speed lbs. (kgf) 7081 (3212)
Tumbler distance ft. in. (mm) 5'1'' (1560)
Crawler length ft. in. (mm) 6'6'' (1990)
Shoe width ft. in. (mm) 12'' (300)
Ground contact pressure psi (kgf/cm2) 3.9 (0.28) / 4.1 (0.29)
Swing system
Unit swing speed rpm 9.4
Boom swing angle Left / Right deg. 80 / 60
Blade
Dimensions Width / Height ft. in. (mm) 4'11'' (1500) / 12'' (300)
Max. lift above ground ft. in. (mm) 1'1'' (340) 1ft. in. (mm)
Max drop below ground 12'' (310)
Hydraulic oil (reservoir/system) gal () 9.0 (34) / 13.2 (50)
Fuel reservoir gal () 11.9 (45)
Operating weight Including operator s weight 175 lbs. Canopy / Cab lbs. (kgf) 6305 / 6550 (2860 / 2970)
____________________________________________________________
