Excavators

Excavator, 8,500#

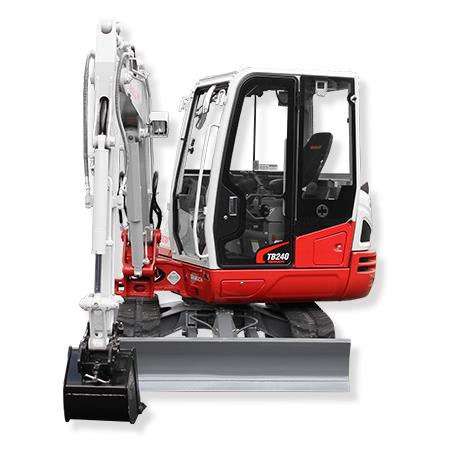

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA

Model: TB235 TB240R TB335 U35 KX030

Quantity:

Additional Information

TB235
OPERATING PERFORMANCE
Operating Weight (Canopy) 7,418 lb (3,365 kg)
Operating Weight (Cab) 7,639 lb (3,465 kg)
Maximum Bucket Breakout Force 9,127 lb (4,140 kg)
Maximum Arm Digging Force 3,889 lb (1,764 kg)
Arm Length 4 ft 9.0 in (1,445 mm)
Slew Speed 9.3 rpm
Traction Force 9,112 lb (4,130 kg)
Ground Pressure (Canopy) 4.4 psi (30.4 kPa)
Ground Pressure (Cab) 4.6 psi (31.4 kPa)
Travel Speed - Low 1.7 mph (2.8 km / hr)
Travel Speed - High 2.6 mph (4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow 28.6 gpm (108.4 L / min)
Auxiliary Flow - Primary Circuit 15.8 gpm (60.0 L /min)
Hydraulic System Pressure 3,553 psi (24.5 MPa)
ENGINE
Make / Model Yanmar / 3TNV88F
Displacement 100.0 cu in (1.6 L)
Horsepower @ 2,400 rpm 24.4 hp (18.2 kW)
Maximum Torque @ 1,440 rpm 68.0 ft-lb (92.2 Nm)
FLUID CAPACITIES
Engine Lubrication 5.0 qt (4.7 L)
Cooling System 4.2 qt (4.0 L)
Fuel Tank Capacity 12.2 gal (46.0 L)
Fuel Consumption (65% of Full Load) 0.90 gal / hr (3.4 L / hr)
Hydraulic Reservoir Capacity 9.2 gal (35.0 L)
Hydraulic System Capacity 18.0 gal (68.0 L)
MACHINE DIMENSIONS
Maximum Reach 17 ft 2.9 in (5,255 mm)
Maximum Reach at Ground Level 16 ft 10.0 in (5,130 mm)
Maximum Digging Depth 10 ft 7.8 in (3,245 mm)
Maximum Vertical Digging Depth 8 ft 2.2 in (2,495 mm)
Maximum Dig Height 16 ft 5.2 in (5,010 mm)
Maximum Dumping Height 11 ft 9.5 in (3,595 mm)
Front Swing Radius 6 ft 6.9 in (2,005 mm)
Front Swing Radius with Boom Offset 5 ft 5.4 in (1,660 mm)
Tail Swing (Slew) Radius 4 ft 4.4 in (1,330 mm)
Transport Length 16 ft 0.9 in (4,900 mm)
Transport Height 8 ft 2.8 in (2,510 mm)
Ground Clearance 11.6 in (295 mm)
Undercarriage Length 6 ft 11.1 in (2,110 mm)
Track Width (Rubber) 11.8 in (300 mm)
Undercarriage Width 5 ft 2.2 in (1,580 mm)
___________
TB240
OPERATING PERFORMANCE
Operating Weight - Canopy 8,570 lb (3,890 kg)
Operating Weight - Cab 8,990 lb (4,080 kg)
Maximum Bucket Breakout Force 9,959 lb (4,517 kg)
Maximum Arm Digging Force 4,110 lb (1,864 kg)
Arm Length 5 ft 3.0 in (1,600 mm)
Slew Speed 9.6 rpm
Traction Force 9,533 lb (4,324 kg)
Ground Pressure - Canopy 4.4 psi (30.2 kPa)
Ground Pressure - Cab 4.6 psi (31.6 kPa)
Travel Speed - Low 1.8 mph (2.9 km / hr)
Travel Speed - High 3.3 mph (5.3 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow 30.6 gpm (115.8 L / min)
Auxiliary Hydraulic Flow 17.1 gpm (64.9 L / min)
Hydraulic System Pressure 3,481 psi (24.0 MPa)
ENGINE
Make / Model Yanmar 4TNV88C
Displacement 133.6 cu in (2.2 L)
Horsepower @ 2,200 rpm 35.8 hp (26.7 kW)
Maximum Torque @ 1,430 rpm 102.6 ft-lb (139.1 Nm)
FLUID CAPACITIES
Engine Lubrication 7.8 qt (7.4 L)
Cooling System 9.5 qt (9.0 L)
Fuel Tank Capacity 18.5 gal (70.0 L)
Fuel Consumption (65% of Full Load) 1.2 gal / hr (4.8 L / hr)
Hydraulic Reservoir Capacity 10.8 gal (41.0 L)
Hydraulic System Capacity 19.5 gal (74.0 L)
MACHINE DIMENSIONS
Maximum Reach 18 ft 2.3 in (5,545 mm)
Maximum Reach at Ground Level 17 ft 9.6 in (5,425 mm
Maximum Digging Depth 11 ft 4.4 in (3,465 mm)
Maximum Vertical Digging Depth 8 ft 8.9 in (2,665 mm)
Maximum Dig Height 17 ft 2.5 in (5,244 mm)
Maximum Dumping Height 12 ft 6.7 in (3,828 mm)
Front Swing Radius 6 ft 8.2 in (2,037 mm)
Front Swing Radius with Boom Offset 5 ft 4.0 in (1,626 mm)
Tail Swing (Slew) Radius 4 ft 5.7 in (1,365 mm)
Transport Length 16 ft 8.2 in (5,020 mm)
Transport Height 8 ft 2.6 in (2,505 mm)
Ground Clearance 11.6 in (295 mm)
Undercarriage Length 6 ft 11.0 in (2,110 mm)
Track Width (Rubber) 13.8 in (350 mm)
Undercarriage Width 5 ft 8.5 in (1,740 mm)
_
TB335
OPERATING PERFORMANCE
Operating Weight - Canopy 7,970 lb 3,615 kg
Operating Weight - Cab 8,310 lb 3,770 kg
Maximum Bucket Breakout 9,172 lbf 4,160 kgf
Maximum Arm Crowd Force 4,290 lbf 1,946 kgf
Arm Length 4' 7.6" 1,410mm
Slew Speed 9.0 rpm
Traction Force 9,105 lbf 4,130 kgf
Ground Pressure - Canopy 4.5 psi 30.9 kPa
Ground Pressure - Cab 4.7 psi 32.2 kPa
Max Travel Speed
Low Range 1.9 mph 3.0 km/h
High Range 2.5 mph 4.1 km/h
HYDRAULIC SYSTEM
Total Hydraulic Flow 31 gpm 117 L/min
Auxiliary Flow - Primary Circuit 17.0 gpm 64.4 L/min
Hydraulic System Pressure 3,550 psi 24.5 Mpa
Auxiliary 1 Pressure 3,050 psi 21.0 Mpa
ENGINE
Make/Model Kubota V1505-E4B
Displacement 91.4 cu in 1.5 L
Horsepower @ 2,300 rmp 24.4 hp 18.2 kW
Maximum Torque @1,700 rpm 70.6 lbf 95.8 Nm
FLUID CAPACITIES
Engine Lubrication 7.1 qt 6.7 L
Cooling System 3.3 gal 12.5 L
Fuel Tank 11.5 gal 43.5 L
Hydraulic Reservoir 7.5 gal 28.4 L
Hydraulic System 15.6 gal 59.0 L
MACHINE DIMENSIONS
Maximum Reach 17 ft 9.7 in 5,430 mm
Maximum Reach at Ground Level 17 ft 4.8 in 5,305 mm
Maximum Digging Depth 10 ft 6.2 in 3,205 mm
Maximum Vertical Digging Depth 8 ft 2.6 in 2,505 mm
Maximum Height of Cutting Edge 16 ft 2.6 in 4,945 mm
Maximum Dumping Height 11 ft 7.0 in 3,531 mm
Front Swing Radius 7 ft 5.2 in 2,265 mm
Front Swing Radius with Boom Offset 6 ft 1.2 in 1,860 mm
Tailswing Radius 3 ft 1.4 in 950 mm
Transport Length 17 ft 10.2 in 5,440 mm
Tranport Height 8 ft 3.2 in 2,520 mm
Ground Clearance 11.6 in 295 mm
Crawler Base 5 ft 8.9 in 1,750 mm
Undercarriage Length 7 ft 3.2 in 2,215 mm
Undercarriage Width 5 ft 8.5 in 1,740 mm
Track Width (Rubber) 11.8 in 300 mm
_
Model U35-4
Type of ROPS / OPG (Top Guard Level I)* Canopy / Cab
Type of tracks Rubber / Steel
Engine
Model Kubota D1703M-DI-E4
Output (SAE J1995 gross) HP (kW) / rpm 24.8 (18.5) / 2200
Output (SAE J1349 net) HP (kW) / rpm 23.9 (17.8) / 2200
Displacement cu. in. (cc) 100.5 (1647)
Dimensions
Overall length ft. in. (mm) 15'7" (4749)
Overall height ft. in. (mm) 8'1.2 (2470)
Overall width ft. in. (mm) 5'6.9" (1700)
Min. ground clearance in. (mm) 11.34 (288)
Hydraulic system
Pump capacity GPM ( /min) 10.5 (39.6.) x 2 / 5.5 (20.9) x 1
Auxiliary hydraulic flow AUX1 GPM ( /min) 15.8 (60)
Max. breakout force
Bucket / Arm lbs. (kgf) 7924 (3594) / 4451 (2019)
Drive system
Travel speed Low / High mph (km/h) 1.9 (3.0) / 2.9 (4.6)
Max. traction force Low speed lbs. (kgf) 6091 (2763)
Tumbler distance ft. in. (mm) 5'6.5" (1688)
Crawler length ft. in. (mm) 6'10" (2084)
Shoe width Rubber in. (mm) 11.8 (300)
Ground contact pressure
Rubber Canopy / Cab psi (kgf/cm2) 4.89 (0.34) / 5.08 (0.36)
Steel Canopy / Cab psi (kgf/cm2) 5.00 (0.35) / 5.19 (0.36)
Swing system
Unit swing speed rpm 8.9
Boom swing angle Left / Right degree 71 / 45
Blade
Dimensions Width ft. in. (mm) 5'6.9" (1700)
Height ft. in. (mm) 1'1.5" (343)
Max. lift above ground in. (mm) 14.65 (372)
Max. drop below ground in. (mm) 14.53 (369)
Hydraulic oil (Reservoir / System) gal ( ) 11.8 (44.6) / 16.1 (61)
Fuel reservoir gal ( ) 12.4 (46.9)
Operating weight (Including operator s weight @ 175 lbs.)
Rubber Canopy / Cab lbs. (kgf) 8129 (3687) / 8451 (3833)
Steel Canopy / Cab lbs. (kgf) 8325 (3776) / 8647 (3922)
_
KX040 KUBOTA (Canopy/ Cab)
Engine
Model: Kubota D1803-CR-TE4
HP: 40.4 (30.1) / 2200
Displacement:111.4 (1826)
Dimensions
Overall length: 16'8.2" (5085)
Overall width: 5'6.9" (1700)
Overall height: 8'1.8" (2485) / 8'1.8" (2485)
Operating weight
Min. ground clearance: 12.99" (330)
(Including operator s weight @ 175 lbs.) Rubber Canopy / Cab 9195 (4170) / 9500 (4310)
_______________
KX033 KUBOTA
Mini Excavator
Engine Horsepower 24.8
Weight: 3.3 Ton
Dig Depth: 10' 6"
Operator Platform/ Canopy/ Cab
