Excavators

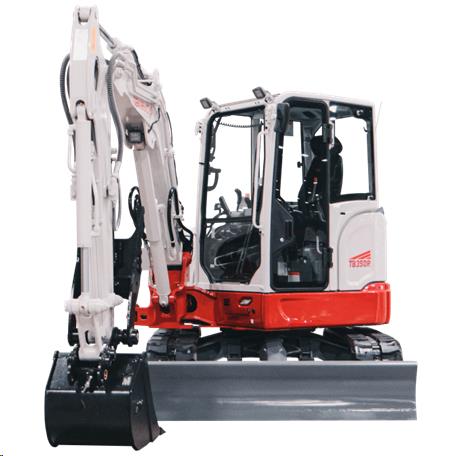

Excavator, 11,000#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Takeuchi

Model: TB250-2 TB350

Quantity:

Additional Information

TB250
OPERATING PERFORMANCE
Operating Weight - Canopy 10,957 lb (4,970 kg)
Operating Weight - Cab 11,288 lb (5,120 kg)
Maximum Bucket Breakout Force 10,430 lb (4,731 kg)
Maximum Arm Digging Force 5,261 lb (2,386 kg)
Arm Length 5 ft 9.2 in (1,760 mm)
Slew Speed 9.5 rpm
Traction Force 12,320 lb (5,588 kg)
Ground Pressure - Cab (Rubber) 4.2 psi (29.0 kPa)
Ground Pressure - Cab (Steel) 4.4 psi (30.0 kPa)
Travel Speed - Low Range 1.7 mph (2.8 km / hr)
Travel Speed - High Range 3.2 mph (5.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow 40.9 gpm (155.3 L / min)
Auxiliary Flow - Primary Circuit 24.2 gpm (91.7 L / min)
Hydraulic System Pressure 3,481 psi (24.0 MPa)
ENGINE
Make / Model Yanmar / 4TNV88C-PTB
Displacement 133.6 cu in (2.2 L)
Horsepower @ 2,400 rpm 39.0 hp (29.1 kW)
Maximum Torque @ 1,440 rpm 106.9 ft-lb (144.9 Nm)
FLUID CAPACITIES
Engine Lubrication 7.8 qt (7.4 L)
Cooling System 7.4 qt (7.0 L)
Fuel Tank Capacity 18.5 gal (70.0 L)
Fuel Consumption (65% of Full Load) 1.45 gal / min (5.5 L / hr)
Hydraulic Reservoir Capacity 11.9 gal (45.0 L)
Hydraulic System Capacity 25.1 gal (95.0 L)
MACHINE DIMENSIONS
Maximum Reach 20 ft 1.0 in (6,120 mm)
Maximum Reach at Ground Level 19 ft 7.6 in (5,985 mm)
Maximum Digging Depth 12 ft 4.8 in (3,780 mm)
Maximum Vertical Digging Depth 9 ft 9.5 in (2,985 mm)
Maximum Dig Height 18 ft 6.6 in (5,655 mm)
Maximum Dumping Height 13 ft 3.3 in (4,045 mm)
Front Swing Radius 7 ft 7.7 in (2,330 mm)
Front Swing Radius with Boom Offset 6 ft 0.8 in (1,850 mm)
Tail Swing (Slew) Radius 4 ft 5.5 in (1,360 mm)
Transport Length 18 ft 0.3 in (5,495 mm)
Transport Height 8 ft 5.2 in (2,570 mm)
Ground Clearance 13.2 in (335 mm)
Undercarriage Length 8 ft 2.4 in (2,500 mm)
Track Width (Rubber) 15.7 in (400 mm)
Undercarriage Width 6 ft 0.0 in (1,839 mm)
________
TB350
OPERATING PERFORMANCE
Operating Weight - Canopy 10,980 lb 4,980 kg
Operating Weight - Cab 11,235 lb 5,095 kg
Maximum Bucket Breakout 10,431 lbf 4,731 kgf
Maximum Arm Crowd Force 5,040 lbf 2,286 kgf
Arm Length 5 ft 5 in 1,650 mm
Slew Speed 8.9 rpm
Traction Force 12,320 lbf 5,588 kgf
Ground Pressure - Canopy 4.1 psi 28.3 kPa
Ground Pressure - Cab 4.3 psi 29.4 kPa
Max Travel Speed
Low Range 1.7 mph 2.8 km/h
High Range 3.1 mph 5.0 km/h
HYDRAULIC SYSTEM
Total Hydraulic Flow 38.5 gpm 145.7 L/min
Auxiliary Flow - Primary Circuit 24.6 gpm 93.2 L/min
Hydraulic System Pressure 3,480 psi 24.0 MPa
Auxiliary 1 Pressure 2,990 psi 20.6 L/min
ENGINE
Make/Model Kubota V2607-CR-E5B
Displacement 159.6 cu. in 2.6 L
Horsepower @ 2,000 rmp 41.7 hp 31.1 kW
Maximum Torque @1,500 rpm 132.8 ft-lb
FLUID CAPACITIES
Engine Lubrication 12.5 qt 11.8 L
Cooling System 10.6 qt 10.0 L
Fuel Tank 14.6 gal 55.3 L
Hydraulic Reservoir 10.8 gal 40.8 L
Hydraulic System 22.5 gal 85 L
MACHINE DIMENSIONS
Maximum Reach 19 ft 10.7 in 6,065 mm
Maximum Reach at Ground Level 19 ft 5.2 in 5,925 mm
Maximum Digging Depth 11 ft 8.8 in 3,575 mm
Maximum Vertical Digging Depth 9 ft 7.1 in 2,925 mm
Maximum Height of Cutting Edge 18 ft 3.6 in 5,580 mm
Maximum Dumping Height 12 ft 11.3 in 3,945 mm
Front Swing Radius 8 ft 3.7 in 2,535 mm
Front Swing Radius with Boom Offset 6 ft 9.4 in 2,065 mm
Tail swing Radius 3 ft 6.3 in 1,075 mm
Transport Length 17 ft 8.2 in 5,390 mm
Tranport Height 8 ft 5 in 2,565 mm
Ground Clearance 13.2 in 335 mm
Undercarriage Length 8 ft 2.4 in 2,500 mm
Undercarriage Width 6 ft 6.7 in 2,000 mm
Track Width (Rubber) 15.7 in 400 mm
