Excavators

Excavator, 12,500#

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Takeuchi

Model: TB257FR TB260 U55

Quantity:

Additional Information

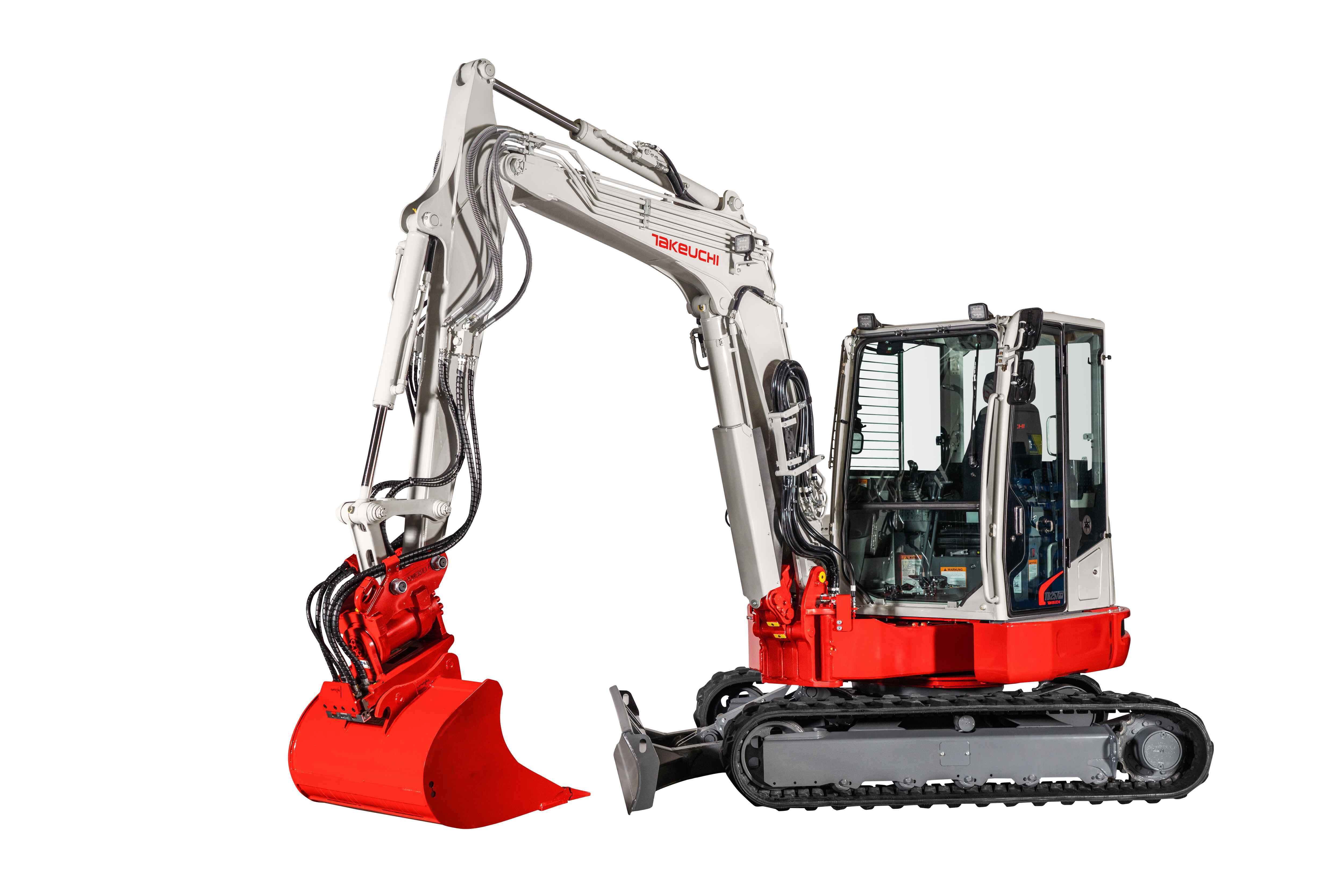

TB257FR Compact Excavator
The newest excavator in the FR platform, the TB257 FR features a side-to-side (STS) offset boom combined with minimal tail swing for unmatched visibility to the work equipment and enables it to rotate fully with very little overhang. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.
Operating Weight - Cab (Rubber) - 12,675 lb
Slew Speed - 9.6 rpm
Travel Speed - Low Range - 1.6 mph
Travel Speed - High Range - 3.0 mph
Gradeability - 30 deg
Ground Pressure - Canopy - 4.7 psi
Maximum Bucket Breakout Force - 10,431 lb
Maximum Arm Digging Force - 5,190 lb
Traction Force - 15,040 lb
Boom Swing Angle (Left/Right) - 30 deg / 16 deg
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit - 27.7 gpm
Auxiliary Flow - Secondary Circuit - 11.8 gpm
Hydraulic System Pressure - 3,481 psi
ENGINE
Make / Model - Kubota V2403-CR-TE5B
Displacement - 148.5 cu in
Horsepower @2,200 rpm - 52.3 hp
Maximum Torque @ 1,300 rpm - 144.3 ft-lb
FLUID CAPACITIES
Engine Lubrication - 10.0 qt
Cooling System - 10.6 qt
Fuel Tank Capacity - 18.5 gal
Hydraulic Reservoir Capacity - 13.7 gal
Hydraulic System Capacity - 26.4 gal
Maximum Reach - 20' 4.6"
Maximum Reach at Ground Level - 19' 11.4"
Maximum Digging Depth - 12' 9.4"
Maximum Vertical Digging Depth - 10' 4.6"
Maximum Height of Cutting Edge - 18' 0.3"
Maximum Dumping Height - 12' 9.2"
Front Swing Radius - 8' 5.5"
Front Swing Radius with Boom Offset - 4' 8.5"
Slew Radius - 3' 10.6"
Overall Length - 17' 8.4"
Overall Height - 8' 5.4"
Upper Structure Overall Width - 6' 2.8"
Ground Clearance - 11.8"
Crawler Base - 6' 6.0"
Crawler Overall Length - 8' 2.4"
Crawler Overall Width - 6' 6.7"
Crawler Shoe Width - 15.7"
__

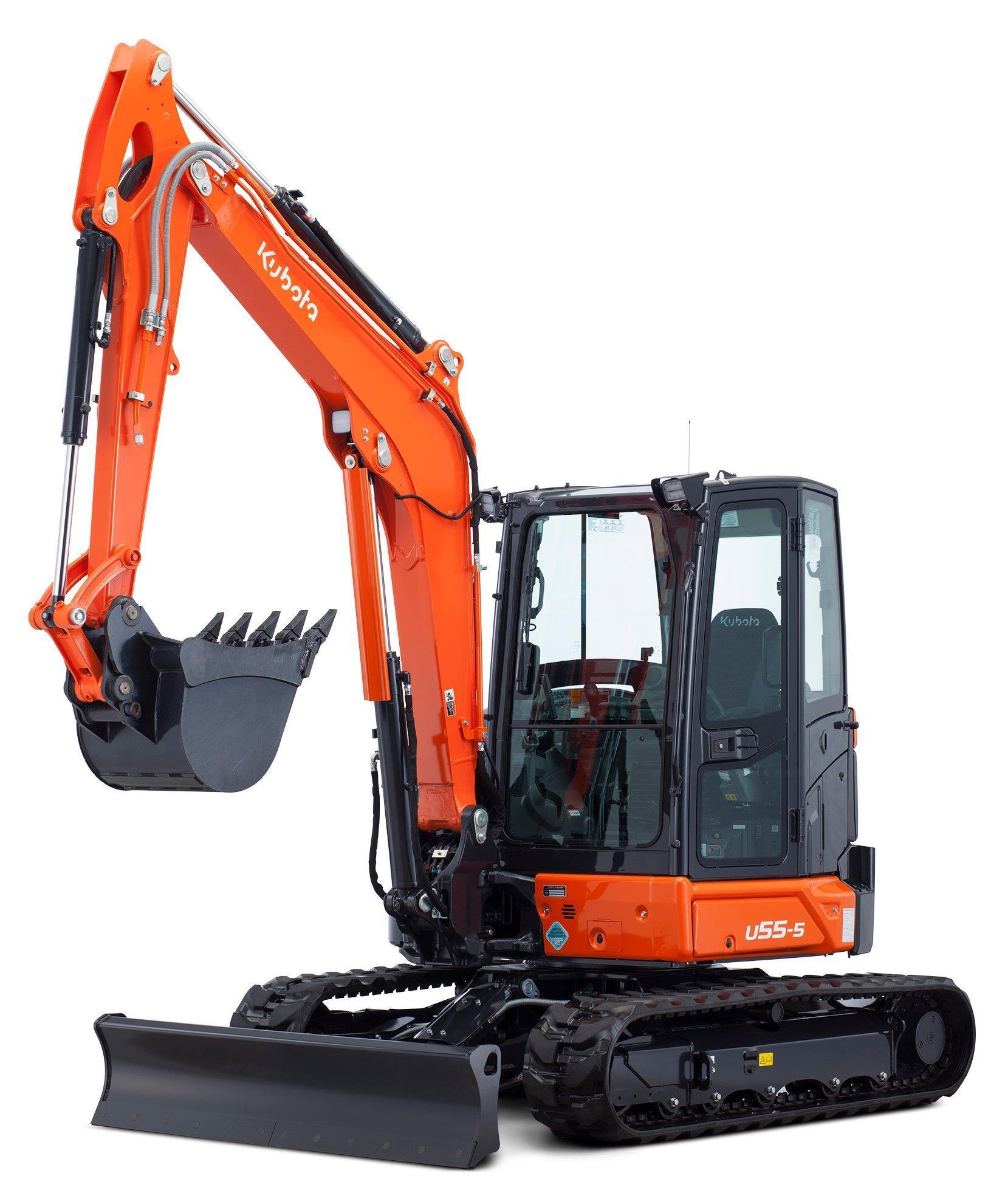

Model U55-5 US RGX1
Type of ROPS / OPG (Top Guard Level I)* Canopy / Cab
Type of Tracks Rubber
Engine
Model Kubota V2607-CR-EW52
Output (SAE J1995 gross) HP (kW)/rpm 47.6 (35.5) / 2200
Output (SAE J1349 net) HP (kW)/rpm 45.2 (33.7) / 2200
Displacement cu.in. (cc) 159.6 (2615)
Dimensions
Overall length ft.in. (mm) 18'0.5" (5500)
Overall height ft.in. (mm) 8'4.4" (2550)
Overall width ft.in. (mm) 6'5.2" (1960)
Min. ground clearance in. (mm) 1'0.2" (310)
Hydraulic system
Pump capacity GPM. ( /min) 14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1
Auxiliary hydraulic flow AUX1 / AUX2 GPM. ( /min) 19.8 (75) / 9.8 (37)
Max. breakout force Bucket / Arm lbs. (kgf) 11177 (5070) / 6261 (2840)
Drive System
Travel speed Low / High mph (km/h) 1.8 / 3.1 (2.8 / 4.9)
Max. traction force Low speed lbs. (kgf) 14480 (6567)
Tumbler distance ft.in. (mm) 6'6.3" (1990)
Crawler length ft.in. (mm) 8'2.4" (2500)
Shoe width Rubber / Steel in. (mm) 1'3.7" (400)
Ground contact pressure
Rubber Canopy / Cab psi (kgf/cm2) 4.42 (0.311) / 4.51 (0.317)
Swing system
Unit swing speed rpm 9.3
Boom swing angle Left / Right degree 70 / 55
Blade
Dimensions
Width ft. in. (mm) 6'5.2" (1960)
Height ft. in. (mm) 1'4.0" (410)
Max. lift above ground in. (mm) 17.3" (440)
Max. drop below ground in. (mm) 16.1" (410)
Hydraulic oil (Reservoir/System) gal ( ) 11.9 (45) / 20.9 (79)
Fuel reservoir gal ( ) 18.0 (68)
Operating weight
(Including operator s weight @ 175 lbs.)
Rubber Canopy / Cab lbs. (kgf) 11915 (5405) / 12115 (5495)
__
TB260R
ENGINE
Make/Model Yanmar /
Tier Rating EPA Final Tier 4
Cylinders/Displacement 4 / 127.6 cu in (2.1 L)
Horsepower 47.6 hp (35.5 kW)
Rated Engine Speed 2,400 rpm
Maximum Torque 149.1 ft-lb @ 1,700 rpm (202.2 Nm)
Engine Lubrication 7.8 qt (7.4 L)
Cooling System 11.6 qt (11.0 L)
Fuel Tank Capacity 20.8 gal (78.6 L)
Fuel Consumption (65% of full load) 1.6 gal / hr (6.3 L/hr)
Electrical System 12 volts / 55 amps
OPERATING PERFORMANCE
Operating Weight 12,180 lbs (5,525 kg)
Maximum Digging Depth 12 ft 9.4 in (3,895 mm)
Maximum Dump Height 13 ft 10.1 in (4,220 mm)
Maximum Reach 20 ft 6.9 in (6,270 mm)
Maximum Bucket Breakout Force 12,756 lbs (5,786 kg)
Maximum Arm Digging Force 5,752 lbs (2,609 kg)
Arm Length 5 ft 10.1 in (1,780 mm)
Slew speed 9.4 rpm
Traction Force 13,997 lbs (6,349 kg)
DIMENSIONS
Maximum Dig Depth 12 ft 9.4 in (3,895 mm)
Maximum Dump Height 13 ft 10.1 in (4,220 mm)
Maximum Reach 20 ft 6.9 in (6,270 mm)
Maximum Vertical Dig Depth 9 ft 9.3 in (2,980 mm)
Overall Width 6 ft 6.7 in (2,000 mm)
Transport Height 8 ft 6.4 in (2,600 mm)
Transport Length 18 ft 2.5 in (5,550 mm)
Ground Clearance 13.0 in (330 mm)
Dozer Blade Height 17.0 in (430 mm)
Independent Boom Swing Angle 78 Left / 55 Right
Min Front Swing Radius (Straight) 7 ft 11.3 in (2,420 mm)
Min Front Swing Radius (Offset) 6 ft 5.8 in (1,975 mm)
Tail Swing Radius 4 ft 3.1 in (1,300 mm)
UNDERCARRIAGE
Traction Drive Type Planetary Reduction w/ Automatic Shift
Parking Brake Spring Applied, Hydraulically Released
Track Roller Type Permanently Sealed, Triple Flanged Rollers
Track Rollers 5 per side
Track Width 15.7 in (400 mm)
Track Ground Contact Length 6 ft 8.7 in (2,050 mm)
Ground Pressure 4.51 psi (31.1 kPa)
Maximum Travel Speed
Low Range 1.7 mph (2.8 km/hr)
High Range 3.0 mph (4.9 km/hr)

Also check the following item(s) related to the above:

* Please call us with any questions about our excavator 12 500 rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
