Excavator, 5,000# Hybrid

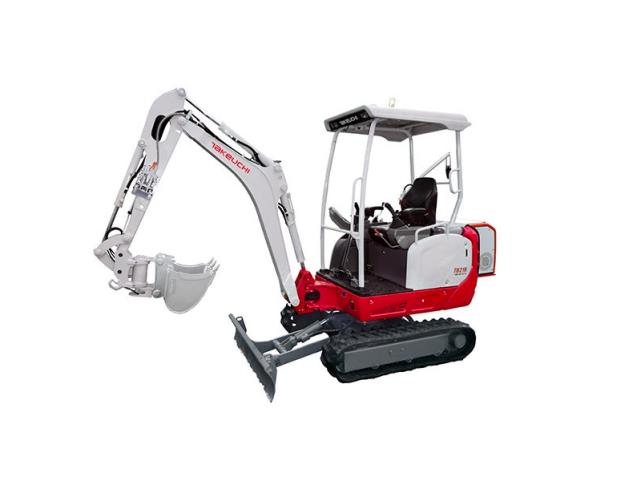

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Takeuchi

Model: TB216HR

Quantity:

Additional Information

OPERATING PERFORMANCE
Operating Weight Canopy 0- 4,277 lbs
Maximum Digging Depth - 7' 10"
Maximum Dump Height - 8' 10.5"
Maximum Reach - 13' 5"
Maximum Bucket Digging Force - 4,250 lbs
Maximum Arm Digging Force - 1,843 lbs
Arm Length - 3' 8.5"
Slew speed - 9.2 rpm
Traction Force - 4,361 lbs
ENGINE:
Make/Model
Yanmar / 3TNV74
Tier Rating - EPA Final Tier 4
Cylinders/Displacement - 3 / .99 L
Horsepower - 14.9 hp
Rated Engine Speed - 2,400 rpm
Maximum Torque - 38.2 ft-lb @ 1,800 rpm
Engine Lubrication - 4.5 qt
Cooling System - 4.0 qt
Fuel Tank Capacity - 5.8 gal
Fuel Consumption (65% of full load) - 0.63 gal / hr
Electrical System - 12 volts / 40 amps
ELECTRIC MOTOR:
Electric Motor with High Voltage Connection Provides 100% Emission Free Operation and Full Functionality
Horsepower - 14.2 hp
Rated Speed - 2,400 rpm
Electrical Connection - 400 - 480 volts / 47-63Hz / Fused with min. 32A
UNDERCARRIAGE:
Traction Drive Type Planetary Reduction w/ Automatic Shift
Parking Brake - Spring Applied, Hydraulically Released
Track Roller Type - Permanently Sealed, Triple Flanged
Track Rollers (per side) - 3 per side
Track Width - 9"
Track Ground Contact Length - 3' 9.5"
Ground Pressure - 4.3 psi
Maximum Travel Speed:
Low Range - 1.4 mph
High Range - 2.6 mph
DIMENSIONS:
Maximum Dig Depth - 7' 10"
Maximum Dump Height - 8' 10.5"
Maximum Reach Ground Level - 13' 2.9"
Maximum Vertical Dig Depth - 6' 9"
Width (Retracted) - 38.6"
Width (Expanded) - 51.2"
Transport Height - 7' 4.8"
Transport Length - 13' 6.8"
Ground Clearance - 8.1"
ENGINE:
EPA Final Tier 4 Compliant
Engine Preheat Starting Aid
Extended Life Coolant
Automatic Fuel Bleed System
Dual Element Air Filter
ELECTRICAL:
Maintenance Free Electric Motor
Electrical Connection 400-480v / 47-63Hz / Fused with Minimum 32A
Multi Information Display that Includes Visual and Audible Alerts for Engine Warning, Engine Oil Pressure, Battery Charge Level and Coolant Temperature
Visual Indicators for Engine Pre-Heat, High Speed, Water Temperature and Fuel Gauge
Function Keys Transition Between Hour/Trip Meter, Time and Alarm, and Contrast Adjustment
12 Volt System with 40 Amp Alternator
Canopy and Boom Mounted Work Lights
Hour Meter
Travel Alarm
Horn
UNDERCARRIAGE AND FRAME:
Triple Flange Track Rollers
Hydraulically Retractable Track Frame
Low and High Range Travel with Auto Downshift
Adjustable Width Backfill Blade
Cast Iron Wrap Around Protective Counterweight
9" Rubber Track
HYDRAULIC:
Variable Displacement Piston Pumps
Cushioned Boom and Swing Cylinders
Precise and Responsive Pilot Controls
Hydraulic Oil Cooler and Sight Gauge
Primary Auxiliary Circuit Plumbed to Arm with One-Way and Two-Way Operation
WORKING EQUIPMENT:
Topside Boom Cylinder
Hydraulic Hoses Protected Inside of Boom and Arm
Long Arm with Integrated Thumb Mount
Available Dual Pin Position Bucket
Available Mechanical Bucket Quick Coupler
Available Main Pin Hydraulic Thumb
OPERATOR'S STATION:
ROPS / TOPS / FOPS Four Post Canopy
Quick Change Control Patter (ISO or SAE)
Suspension Seat with Fore and Aft Adjustments
Auxiliary Hydraulics Controlled with Foot Pedal
2" Reatractable Seat Belt
Available 3" Non-Retractable Seat Belt
