Track Loaders

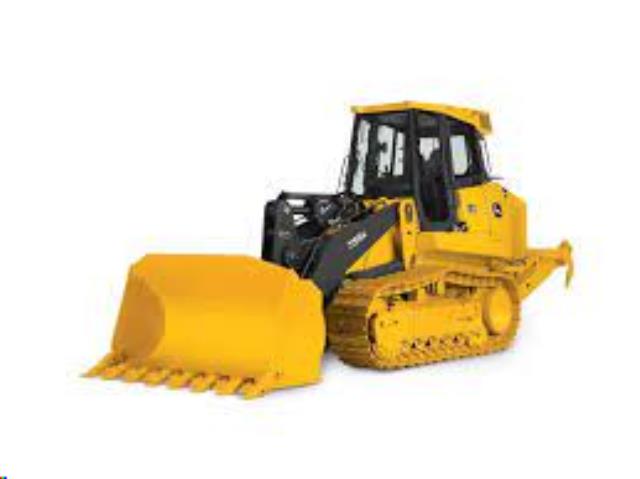

Track Loader, 3 Yard with 4n1 Bucket

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: John Deere

Model: 755

Quantity:

Additional Information

John Deere 755K:
DRIVELINE
Engine Manufacturer John Deere
Engine Model PowerTech PVS 6068
Emission Rating Tier 4
Displacement, ltr (Inches ) 6.8 (415)
Rated Speed, rpm 1800
Engine Output - Net, kW (hp) 145 (194)
Transmission type Hydrostatic
Final drive type In-line Drive Motor - Double Reduction Planetary
Track rollers per side - std 6
Track shoe pitch, mm (inches) 203 (8)
Track shoe width, mm (inches) 560 (22)
Ground Contact Area, cm (Inches ) 28985 (4493)
Track shoes per side - std 38
DIMENSIONS
Overall length, mm (ft/in) 6824 (22 ft 5 in)
Max. height, mm (ft/in) 3330 (10 ft 11 in)
Track length on ground, mm (inches) 2588 (102)
Ground clearance, mm (inches) 432 (17)
Track gauge - standard, mm (ft/in) 1880 (6 ft 2 in)
Shovel 1 width, mm (ft/in) 2591 (8 ft 6 in)
Shovel 1 dump height 45 max, mm (ft/in) 2950 (9 ft 8 in)
Bucket pin height, mm (ft/in) 4080 (13 ft 4 in)
Bucket reach - max, mm (ft/in) 1100 (3 ft 7 in)
Digging depth, mm (inches) 167 (6.6)
Steering clutches and brakes No
CAPACITIES
Fuel tank capacity, ltr (gallons (US)) 326 (86)
Implement hydraulic tank, ltr (gallons (US)) 103 (27.2)
Shovel 1 capacity, m (yd ) 2.5 (3.2)
PERFORMANCE
Ground bearing pressure - standard, kPa (PSI) 69.6 (10.1)
Static tipping load shovel 1, kg (lbs) 15362 (33867)
Breakout force - max, kN (lbf) 197 (44287)
Voltage, V 24
Alternator output, Amp 100
Pump type Piston Pump - Load Sensed
Pump flow, lt/min (gallons (US) / min) 246 (65)
Relief pressure, kPa (PSI) 26028 (3775)
WEIGHTS
Operating weight std, kg (lbs) 20492 (45178)

* Please call us with any questions about our track loader 3 yard with 4n1 bucket rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
