Track Loader, 4000# 48" Wide

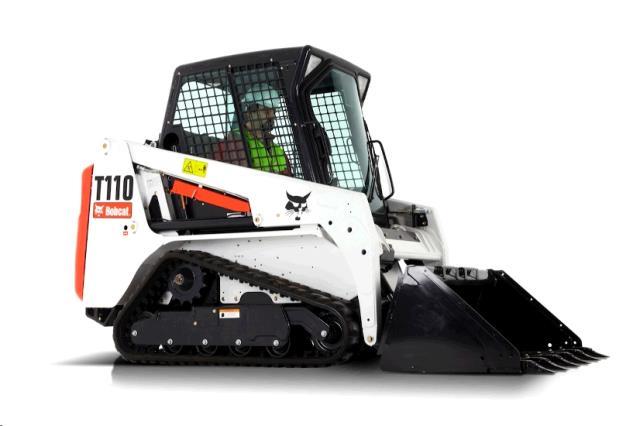

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: ASV

Model: RT40, T110

Quantity:

Additional Information

ASV RT-40 Posi-Track Loader
PRODUCT SPECIFICATIONS:
OPERATING SPECS:
Operating weight - 4,175 lb
Ground pressure @ operating weight - 3.5 psi
Full Length - 112.7 in.
Hinge Pin Height - 101 in.
Machine Height - 75.5 in.
Width - 48.3 in.
Ground Clearance - 10.8 in.
Rated operating capacity (35% tipping load) - 931 lbs
Tipping load - 2,660 lb
Travel speed, max - 7.1 mph
ENGINE:
Type - Diesel, 3-cylinder, Turbocharged
Model - Kubota D1803-CR-T
Displacement - 111.4 cu. in.
Gross power rating @ 2800 rpm - 37.5 hp
Emission controls - Meets all US EPA Tier 4 final standards
UNDERCARRIAGE:
Track width - 11 in.
Length of track on ground - 55 in.
Ground contact area - 1,210 sq. in.
Drive system - Two hydrostatic direct-drive sprockets controlled by a single joystick.
Track drive sprockets - Elevated, with low-friction, replaceable sprocket rollers.
Undercarriage suspension - Two independent torsion axles per undercarriage (side).
Roller wheels - 12 high-density polyurethane and rubber wheels per track. Wheels have sealed roller bearings.
Roller wheel diameter - 10 in.
AUX. HYDRAULICS:
Pump capacity - 13.3 gpm
System pressure, max - 3,000 psi
Cooling system - High-efficiency hydraulic oil cooler beside (not stacked) engine radiator.
ELECTRICAL:
Nominal charge - 12 V
Battery - 525 CCA
Charging system - 60-amp alternator
_________________________________
RT-25 COMPACT TRACK LOADER
OPERATING SPECIFICATIONS
Loader Arms: Radial
Operating Weight: 3755 lbs (1703 kg)
Shipping Weight: 3369 lbs (1528 kg)
Ground Pressure at Operating Weight: 3.1 psi (21.4 kPa)
Rated Operating Capacity (35% of tipping load): 665 lbs (302 kg)
Operating Capacity (50% of tipping load): 950 lbs (431 kg)
Tipping Load: 1900 lbs (862 kg)
Travel Speed, Maximum: 5.1 mph (8.2 kph)
ENGINE
Type: Diesel, 3-cylinder
Model: Perkins 403J-11T
Displacement: 103.7 in (1.7 L)
Gross Power Rating at 2800 RPM: 24.7 hp (18.4 kW)
Torque, Peak: 66.4 ft-lb (90 Nm)
Cooling System: Engine-driven fan and coolant anti-freeze-filled radiator
Intake Air Cleaner: Dual stage
Emission Controls: Meets all U.S. EPA Tier 4 final standards
UNDERCARRIAGE
Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. Single row of trackdrive lugs molded in. Turf track with smooth tread available as an option.
Track Width: 11 in. (279 mm)
Length of Track on Ground: 55 in. (1397 mm)
Ground Contact Area: 1210 in (0.78 m )
Drive System: 2 hydrostatic direct drive sprockets controlled by single joystick
Track Drive Sprocket: Elevated with low friction, replaceable sprocket rollersUndercarriage Suspension: 2 independent torsion axles per undercarriage
Roller Wheels: 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Roller Wheel Diameter: 10 in. (254 mm)
AUXILIARY HYDRAULIC SYSTEMPump Capacity: 11.3 gpm (42.8 lpm)
System Pressure, Max: 3000 psi (20684 kPa)
Controls: Intermittent via joystick button mode selectable via dash-mounted switchCouplers: Push-to-connect quick couplers mounted on loader arms
Cooling System: High efficiency oil cooler beside engine radiator, not stackedStandard Features: Manual quick-attachELECTRICAL SYSTEMNominal
Charge: 12 VBattery: 525 CCA
Charging System: 65 amp alternatorOutlets: 1 - 12 V port inside operator station
Wiring: Pre-wired for all factory-available accessories
Standard Features: Engine block heater
OPERATOR STATION
Seat: Vinyl seat with built-in operator presence switch, lap bar and 2-inch (51 mm) wide seat belt. An adjustable suspension seat is optional.
Loader Control: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic.
Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.Engine Speed: Hand-operated throttle lever.
Indicators and Gauges: Engine oil low-pressure light, Hydraulic oil high-temperature light, Engine high-temperature light, Low battery voltage light, Hour meter, Fuel gauge
ROPS: Meets SAE J1040 MAY94, ISO 3471
FOPS: Meets SAE J1043 SEP87, ISO 3449Illumination:4 - Fixed forward-facing halogen lights1 - Adjustable rear-facing halogen light1 - Interior lightConvenience: 12 V power portStandard Features: Horn, backup alarm, sound insulation
