Track Loaders

Track Loader, 9500#-10000# 68"-76" Wide

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: TAKEUCHI KUBOTA

Model: TL10, TL10V2 SVL75

Quantity:

Additional Information

TL10V2 Compact Track Loader
The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant. The cab is completely redesigned and enlarged and features a low effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.
Product Details
Features
ENGINE:
EPA Final Tier 4 Emission Compliant - Turbocharged - High Pressure Common Rail Injection System - DOC+DPF Exhaust After Treatment - Automatic Fuel Bleed System - Active Power Control Power Management System - Working Modes - Power and ECO - Dual Element Air Filter - High Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame
ELECTRICAL:
5.7" Color Multi-Informational Display with Rear Camera - Sealed Rocker Switches -
12 volt System with 60 amp Alternator - LED: Two Front and Two Rear - Engine Preheat - Hour Meter - Back-up Alarm - Horn
UNDERCARRIAGE AND FRAME:
Double Planetary Reduction Drives - Permanently Sealed Track Rollers with Metal Face Seals - Fully Welded Frame with Integrated Cross Members - 2 Speed Travel
15.7" Rubber Track - Grease Type Track Adjuster - Front and Rear Tie-Down Points and Lift Points - Rear Bumper Integrated into Frame
OPERATOR'S STATION:
Tilt-up Operator's Station - Deluxe High Back Suspension Seat - Rear View Camera - Foot Throttle - Dial Throttle Control - Rear Pivoting Lap Bar with Arm Rest - ROPS / FOPS Structure - Retractable 3" Seat Belt - Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM / FM / MP3 Radio with
HYDRAULIC & WORKING EQUIPMENT:
Vertical Lift Design - Pilot Hydraulic Controls - Boom Float with Detent - Cushioned Boom Cylinders - Hydraulic Self Leveling - Proportional Auxiliary Hydraulic Controls with Detent - Pressure Relieving Flat Faced Coupler Body - 14-Pin Connector with Push Button Control - High Capacity Steel Hydraulic Tank - Mechanical Quick Coupler - Hydraulic Quick Coupler Cab - Standard Equipment
Primary Flow Auxiliary Hydraulics 18.8 gpm
Specifications:
OPERATING PERFORMANCE
Operating Weight - Canopy - 9,840 lb
Operating Weight - Cab - 10,150 lb
Tipping Load - 7,205 lb
Rated Operating Capacity (ISO 14397-1)@35%* - 2,522 lb
Operating Load at 50% of Tipping Load - 3,600 lb
Bucket Breakout Force - 6,520 lb
Lift Arm Breakout Force - 5,400 lb
Traction Force - 9,730 lb
Ground Pressure - Canopy - 4.9 psi
Ground Pressure - Cab - 5.1 psi
Travel Speed - Low 4.8 mph
Travel Speed - High 7.0 mph
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM:
Auxiliary Flow - Primary Circuit - 18.8 gpm
Hydraulic System Pressure - 3,481 psi
ENGINE:
Make / Model - Kubota / V3307CR-TE4B
Engine Displacement - 3.3 L
Horsepower @ 2,600 rpm - 74.3 hp
Maximum Torque @ 1,500 rpm - 195 ft-lb
FLUID CAPACITIES:
Engine Lubrication - 11.8 qt
Cooling System - 15.9 qt
Fuel Tank Capacity - 21.5 gal
Fuel Consumption (65% of Full Load) - 2.7 gpm
Hydraulic Reservoir Capacity - 9.5 gal
Hydraulic System Capacity - 17.2 gal
MACHINE DIMENSIONS:
Max. Lift Height to Bucket Pin - 10' 4.8"
Dump Height Fully Raised - 7' 11.9"
Dump Reach Fully Raised - 3' 1.4"
Dump Angle - 40
Rollback Angle - 30
Track Ground Contact Length - 4' 7.9"
Machine Length - 9' 7.2"
Transport Length - 12' 1.0"
Transport Height - 7' 5.4"
Departure Angle - 30
Clearance Circle with Bucket - 7' 8.5"
Clearance Circle without Bucket - 5'
Clearance Circle Rear - 5' 5.2"
Track Width - 15.7"
Ground Clearance - 12.6"
Overall Width without Bucket - 5'8.5"
__________
TL10V2R
R stands for radial lift loader design and V stands for vertical lift loader design
_________
TL10R Compact Track Loader
Operating Weight ... (w 165 lb operator) - Cab 10,365 lb
Standard machine with bucket
Horsepower Gross ... 92.0 hp
Horsepower Net ... 90.7 hp
Tipping Load ... 6,867 lb
Traction Force (lbs) ... 11,067 lb
Front Clearance Radius without Bucket ... 4' 11"
Rear Clearance Radius ... 5' 6"
Dump Height Fully Raised ... 7' 10"
Overallt Width without Bucket ... 5' 9"
Overall Height ... 7' 5"
Overall Length without Bucket ... 9' 9"
Fuel Tank Capacity ... 23.8 Gal.
______________

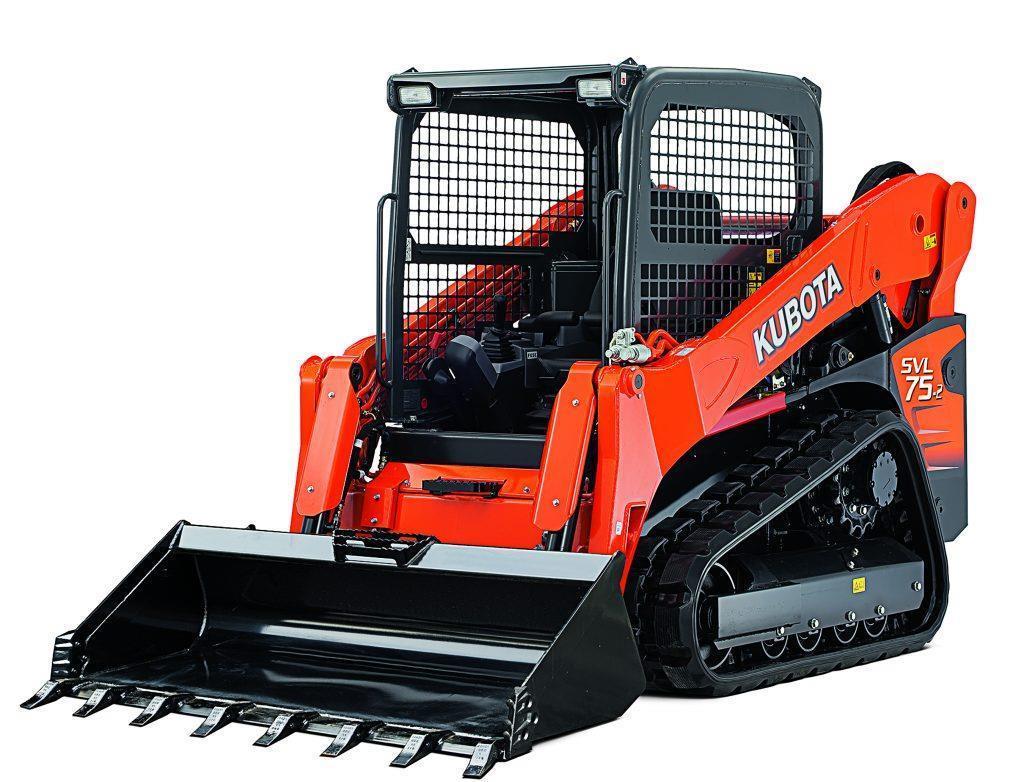

SVL75 KUBOTA TRACK LOADER
SPECIFICATIONS:
Horsepower (gross) 74.3
Displacement cu. in. (cc) 203.2
Overall Length, ft (mm) 142.1
Overall Height, ft (mm) 81.8
Overall Width, ft (mm) Vehicle Width Standard Track / Wide Track, ft (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, ft (mm): 68 (1727)
Operating Weight, lbs (kg) 9190
Rated Operating Capacity (ROC), lbs (kg) 2490
Tipping Load, lbs (kg) 7112
Bucket Breakout Force, lbf (kg) 6191
Lift Arm Breakout Force, lbf (kg) 4723
Lift Arm Path VERTICAL
Track Width (standard/wide), in. (mm) 12.6 / 15.8
Ground Contact Pressure, psi (kPa) Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8
Track Rollers (per side) 4
Track Ground Contact Length, in. (mm) 56.5
Traveling Speed: High, mph (kph) 8.6
Traveling Speed: Low, mph (kph) 5.6
Traction Force, lbf (kgf) 9678
Ground Clearance, in (mm) 11.7
Auxiliary Hydraulic Pressure, psi (bar) 3185
Auxiliary Hydraulics Flow Rate, GPM (LPM) 17.4
Height to Hinge Pin, in (mm) 122.7
Ground Pressure, (psi) Standard: 5.8/5.9 Wide: 4.7/4.8
