Track Loaders

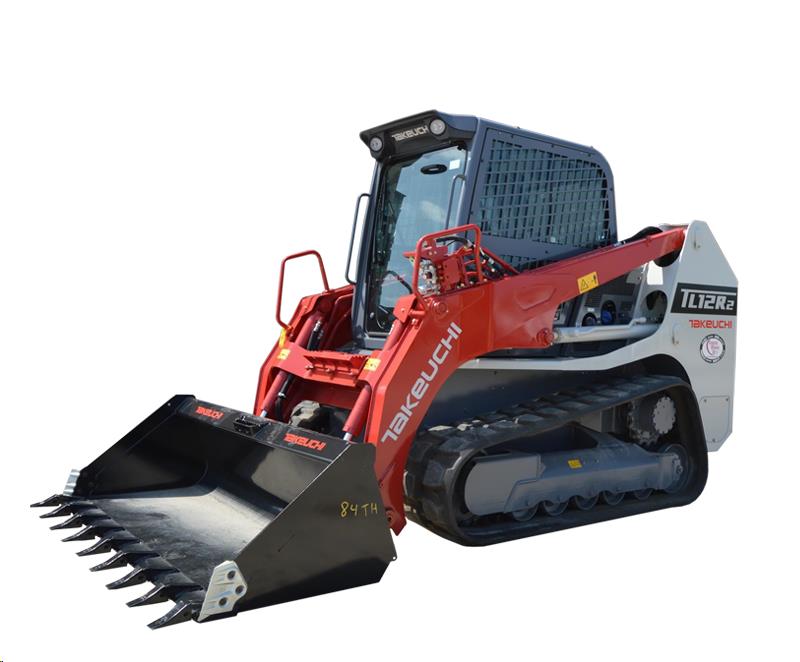

Track Loader, 12,000#-13,000# 76"-80" Wide

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Model: TL12V2-R, TL12R2-R, SVL95

Quantity:

Additional Information

TL12V2
SPECIFICATIONS:
Operating Weight ... (w 165 lb operator) - Canopy 12,705 lb / Cab 13,040 lb
Standard machine with bucket
Horsepower ... 111.3 hp
Tipping Load ... 11,737 lb
Traction Force (lbs) ... 14,006 lb
Front Clearance Radius without Bucket ... 8' 2.6"
Rear Clearance Radius ... 6' 1"
Dump Height Fully Raised ... 8' 1"
Overall Width without Bucket ... 6' 5.2"
Transport Height ... 7' 9.7"
Transport Length without Bucket ... 10' 6" / with Bucket 13' 3.3"
Fuel Tank Capacity ... 24.8 Gal.
_________________________________________________________
TL12R2
SPECIFICATIONS:
Operating Weight ... (w 165 lb operator) - Canopy 12,705 lb / Cab 13,040 lb
Standard machine with bucket
Horsepower ... 111.3 hp
Tipping Load ... 11,737 lb
Traction Force (lbs) ... 14,006 lb
Front Clearnce Radius without Bucket ... 8' 2.6"
Rear Clearance Radius ... 6' 1"
Dump Height Fully Raised ... 8' 1"
Overall Width without Bucket ... 6' 5.2"
Transport Height ... 7' 9.7"
Transport Length without Bucket ... 10' 6" / with Bucket 13' 3.3"
Fuel Tank Capacity ... 24.8 Gal.
_
TL12R
Operating Weight - Canopy 12,300 lb (5,580 kg)
Cab 12,590 lb (5,710 kg)
Tipping Load 8,629 lb (3,915 kg)
Rated Operating Capacity, SAE J818* 2,975 lb (1,349 kg)
Operating Load at 50% of Tipping Load 4,315 lb (1,957 kg)
Bucket Breakout Force 8,210 lb (3,722 kg)
Lift Arm Breakout Force 8,075 lb (3,663 kg)
Traction Force 14,010 lb (6,353 kg)
Ground Pressure - Canopy 4.58 psi (31.6 kPa)
Ground Pressure - Cab 4.68 psi (32.3 kPa)
Travel speed - Low 5.0 mph (8.1 km/hr)
High 7.3 mph (11.8 km/hr)
Make / Model Kubota / V3800TIF4BTurbo Intercooled
Engine Displacement 230 cu in (3.8 L)
Horsepower @ 2,400 rpm 111.3 hp (83.0 kW)
Maximum Torque @ 1,500 rpm 276 ft-lb (374 Nm)
Auxiliary Flow - Primary Circuit 23.2 gpm (88.0 Lpm)
Auxiliary Flow - High Flow (optional) 40.4 gpm (153.0 Lpm)
Auxiliary Flow - Secondary Circuit
(optional)
23.2 gpm (88.0 Lpm)
Hydraulic System Pressure 3,481 psi (24.0 MPa)
Engine Lubrication 13.9 qt (13.2 L)
Cooling System 19.0 qt (18.0 L)
Fuel Tank Capacity 31.6 gal (119.5 L)
DEF Fluid Tank Capacity 4.8 gal (18.0 L)
Fuel Consumption (65% of Full Load) 3.8 gal/hr (14.4 L /hr)
Hydraulic Reservoir Capacity 13.2 gal (50.0 L)
Hydraulic System Capacity 20.9 gal (79.0 L)
__________________________________________
TL12R2-R
Tier 4
ENGINE
Make / Model Kubota / V3800TIF4B-Turbo Intercooled
Engine Displacement 230 cu in
Horsepower @ 2,400 rpm 111.3 hp
Maximum Torque @ 1,500 rpm 276 ft-lb
OPERATING PERFORMANCE
Operating Weight - Canopy 12,300 lb
Operating Weight - Cab 12,590 lb
Tipping Load 8,629 lb
Rated Operating Capacity
(ISO 14397-1) @35%* 2,975 lb
Operating Load @ 50% of Tip Load 4,315 lb
Bucket Breakout Force 8,210 lb
Lift Arm Breakout Force 8,075 lb
Traction Force 14,010 lb
Ground Pressure - Canopy 4.58 psi
Ground Pressure - Cab 4.68 psi )
Travel Speed - Low 5.0 mph
Travel Speed - High 7.3 mph
MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin 10 ft 6.0 in
Dump Height Fully Raised 7 ft 10.5 in
Dump Reach Fully Raised 3 ft 1.8 in
Dump Angle 42
Rollback Angle 30
Track Ground Contact Length 5 ft 7.5 in
Machine Length 10 ft 6.2 in
Transport Length 13 ft 3.3 in
Transport Height 7 ft 7.0 in
Departure Angle 30
Clearance Circle with Bucket 8 ft 4.6 in
Clearance Circle without Bucket 5 ft 4.4 in
Clearance Circle Rear 6 ft 0 in
Track Width 17.7 in
Ground Clearance 12.5 in
Overall Width without Bucket 6 ft 5.2 in
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit 23.2 gpm
Auxiliary Flow - High Flow (optional) 40.4 gpm
Auxiliary Flow - Secondary Circuit (optional) 23.2 gpm
Hydraulic System Pressure 3,481 psi
_____________________________________________________
TL122V2-R
Operating Weight ... (w 165 lb operator) - Canopy 12,705 lb / Cab 13,040 lb
Standard machine with bucket
Horsepower ... 111.3 hp
Tipping Load ... 11,737 lb
Traction Force (lbs) ... 14,006 lb
Front Clearance Radius without Bucket ... 8' 2.6"
Rear Clearance Radius ... 6' 1"
Dump Height Fully Raised ... 8' 1"
Overall Width without Bucket ... 6' 5.2"
Transport Height ... 7' 9.7"
Transport Length without Bucket ... 10' 6" / with Bucket 13' 3.3"
Fuel Tank Capacity ... 24.8 Gal.
__________________________________________________________
TL12V2-CRH
Operating Weight ... (w 165 lb operator) - Canopy 12,705 lb / Cab 13,040 lb
Standard machine with bucket
Horsepower ... 111.3 hp
Tipping Load ... 11,737 lb
Traction Force (lbs) ... 14,006 lb
Front Clearance Radius without Bucket ... 8' 2.6"
Rear Clearance Radius ... 6' 1"
Dump Height Fully Raised ... 8' 1"
Overall Width without Bucket ... 6' 5.2"
Transport Height ... 7' 9.7"
Transport Length without Bucket ... 10' 6" / with Bucket 13' 3.3"
Fuel Tank Capacity ... 24.8 Gal.
_________

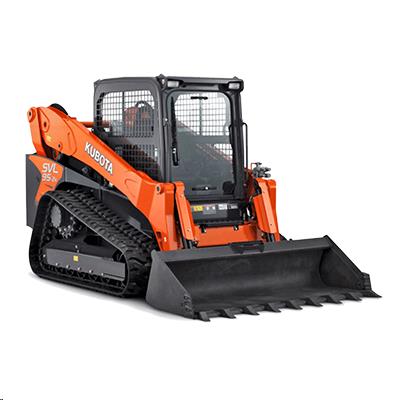

SVL95
SPECIFICATIONS:
Horsepower (gross) 96.4
Displacement cu. in. (cc) 230.0
Overall Length, ft 154.6
Overall Height, ft 83.3
Overall Width, ft 77.2
Operating Weight, lbs 11,277
Rated Operating Capacity (ROC), lbs 3200
Tipping Load, lbs 9143
Bucket Breakout Force, lbf 7623
Lift Arm Breakout Force, lbf 5530
Lift Arm Path Vertical
Track Width (standard/wide), in. 17.7
Ground Contact Pressure, psi 4.4 / 4.5
Track Rollers (per side) 5
Track Ground Contact Length, in. 65.6
Traveling Speed: High, mph 7.3
Traveling Speed: Low, mph 5
Traction Force, lbf 12178
Ground Clearance, in 11.5
Auxiliary Hydraulic Pressure, psi 3553
Auxiliary Hydraulics Flow Rate, GPM 23.1 / 40.0
Height to Hinge Pin, in 128.5
Ground Pressure, (psi) 4.4 / 4.5
__________
SVL97-2
Open CAB / Closed CAB
V3800-TIER 4
HP 96.4 (71.9)/ 2400
Displacement 230.0 (3769) 4
3.94 (100) 4.72 (120)
Turbocharged 3200 (1451)
Tipping load 9143 (4147)
7961 (3611)
6742 (3058)
Vertical Lift Arm / Track Width 17.7(450)
PSI 4.4 / 4.5 5
Track Ground Contact Length 65.6 (1667)
Traveling Speed low 5.0 (8.0)
TS High mph 7.3 (11.7)
Traction Force IBF 12178 (5524)
Ground Clearance inches 11.5 (293)
Auxiliary Hydraulic Pressure, psi 23.1 (87.6) / 40.0 (152)
__________________________
