Wheel Loaders

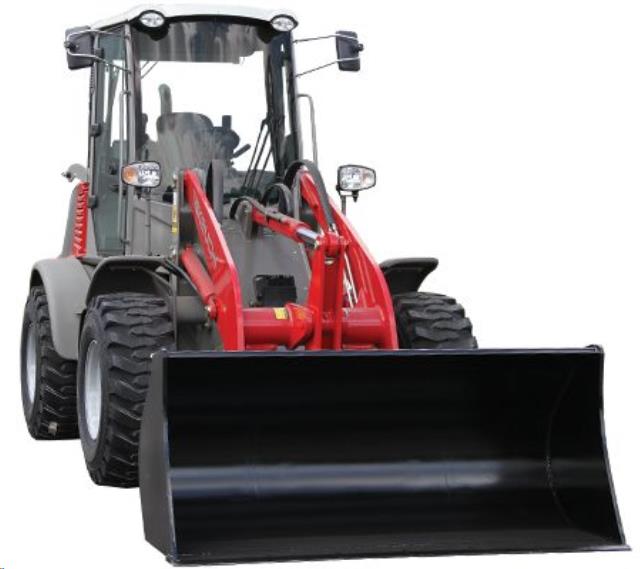

Wheel Loader, 1.5 Yard

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

Manufacturer: Takeuchi

Model: TW80

Quantity:

Additional Information

TW80C3:
OPERATING PERFORMANCE
Operating Weight - Cab 12,700 lb
Tipping Load, Straight 10,065 lb
Tipping Load, Full Turn 8,890 lb
Operating Capacity, SAE J818* 4,445 lb
Bucket Breakout Force 13,960 lb
Lift Arm Breakout Force 12,387 lb
Traction Force 11,802 lb
Travel Speed - Low Range 4.0 mph
Travel Speed - High Range 12.4 mph
Optional High Speed Travel 24.8 mph
* Rate Operating Capacity (ROC) for wheel loaders is rated with a bucket
according to SAE J818 at no more than 50% of the full turn tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit 16.4 gpm
Auxiliary Flow - Optional Circuit 26.0 gpm
Hydraulic System Pressure 3,335 psi
ENGINE
Make/Model Deutz / TD2.9L Turbo
Engine Displacement 176 cu in
Horsepower @ 2,200 rpm 73 hp
Maximum Torque @ 1,800 rpm 192 ft-lb
FLUID CAPACITIES
Engine Lubrication 2.91 qt
Cooling System 3.96 qt
Fuel Tank Capacity 26.4 gal
Fuel Consumption (65% of Full Load) 2.6 gal/hr
Hydraulic Reservoir Capacity 21.9 gal
Front Axle Lubrication 1.19 qt
Rear Axle Lubrication 1.11 qt
Dimensions
MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin 11 ft 1.0 in
Dump Height Fully Raised 8 ft 6.0 in
Max. Reach Fully Raised 2 ft 5.0 in
Dump Angle 45
Rollback Angle 48
Overall Length with Bucket 18 ft 3.0 in
Overall Height 8 ft 11.5 in
Overall Operating Height 13 ft 10.0 in
Wheel Base 7 ft 2.6 in
Ground Clearance 1 ft 6.5 in
Overall Width without Bucket 6 ft 9.0 in
Turning Radius at Bucket Edge 14 ft 8.0 in
Outside Turning Radius 13 ft 3.0 in
Inside Turning Radius 6 ft 3.0 in
Recommended Bucket Width 81.5 in

* Please call us with any questions about our wheel loader 1.5 yard rentals in Los Angeles, Orange, San Bernardino, San Diego, and Riverside Counties, Santa Fe Springs, Sun Valley, or Corona California.
